This is about a New Methodology and not just a different way to wind an existing motor "as is"...I will try to explain as a "Generalization". However, "a simple answer"



We build Motors here, where "unused" Energy flows out, back to our sources to be utilized or stored back.

We enhance Motor Performance with this new tech, where Torque and Speed Parameters no longer co-exist as Inversely Proportional (meaning we can only have one Parameter at top performance, sacrificing the second one to lower spec's)...but directly proportional, where Speed and Torque are achieved equally in an ascending curve.

This type of Motors would "take" higher potentials ranges (Voltages) as higher densities of Currents (Amperage) where Closed Systems could never afford to "process", since they are limited by closed looping of its rotor coils.

STRUCTURAL MODIFYING

Motors structure must be modified, as adding a second commutator on the other side of rotor shaft, in some cases shaft must be replaced by a longer one, as outer casing/housing also must be "elongated" to fit the dual commutators rotor assembly.

COILS WINDING

Once structure is modified, then winding process is also different from existing motors.

On any existing Motor the winding is a continuous series looping that closes at the end of last wound coil, meaning, all wires are short circuited...or called "Closed Winding".

In my Methodology Coils are Isolated or "Open" related to next ones in the Sequence. In order that each coil gets Energized separately when making contact, then by an action of either repulse or attract, or both, it automatically/mechanically, disconnects from contact, pushing or pulling next Coil in line. Disconnected Coils travel to a second Gate-Brush, where it "exhaust" its charge as an output.

This way All Coils get a "brake" or an "idling" stage at disconnection, cooling off, plus getting induced by traveling in front of Stators Magnetic Fields, then reaching Output Stage.

Did You see my video ASYMMETRY TO ENLIGHTENMENT ?

Did You read my ABSTRACT at Introduction First Page of this Thread?:



Hope this post will help you to understand it better...


Regards


Ufopolitics

[BroMikey]

Hi Mike,

If you go back to the beginning of this thread and take a look at the
small 9VDC motors being experimented with, you will get the idea about
what is going on here.

Thanks Glen

Been doing some video's too

https://www.youtube.com/watch?v=_bBLguuBTuQ

------------------------------------------------------

[GlenWV]

I have never seen a double ended rotor commutator. But now that I
have it seems like the idea here would be to feed one end power in
and the other end or the other commutator would be connected in a
way to power something. A sort of rotating input output motor-Gen.

I guess I just never saw one before. I'll bet you could have field day
running a 3 battery split pos system on each end

Is this design from 2014? Is there a self running machine? Or
are you still testing possibilities?

Hi Mike,

If you go back to the beginning of this thread and take a look at the small 9VDC motors being experimented with, you will get the idea about what is going on here.

Think Left to Right. Voltage comes in via the Left brush and exits via the Right brush on the same side. See UFO's many fine drawings and it will become clear.

Get two small motors and make one dual commutator motor from them. Then, graduate to something like the P56 that Mr. UFO recommends. About any DC motor will do, and commutators aren't expensive. (You need two motors to get end caps and brush rigging.)

I used the long shaft so as to be able to get work from both ends, kinda like a bench grinder.

Your local trade school is a good place to have a longer shaft fabricated and installed if you don't have the tools to do it yourself. (I often get the work done pretty much for free.)

Enjoy!!

glen

[BroMikey]

Guess it is part of the balancing process to sand-smooth the outer rotor steel laminates, meaning to lathe-cut-rectify the green epoxy so it runs smooth within stators right?


Ufopolitics

I have never seen a double ended rotor commutator. But now that I
have it seems like the idea here would be to feed one end power in
and the other end or the other commutator would be connected in a
way to power something. A sort of rotating input output motor-Gen.

I guess I just never saw one before. I'll bet you could have field day
running a 3 battery split pos system on each end

Is this design from 2014? Is there a self running machine? Or
are you still testing possibilities?

[GlenWV]

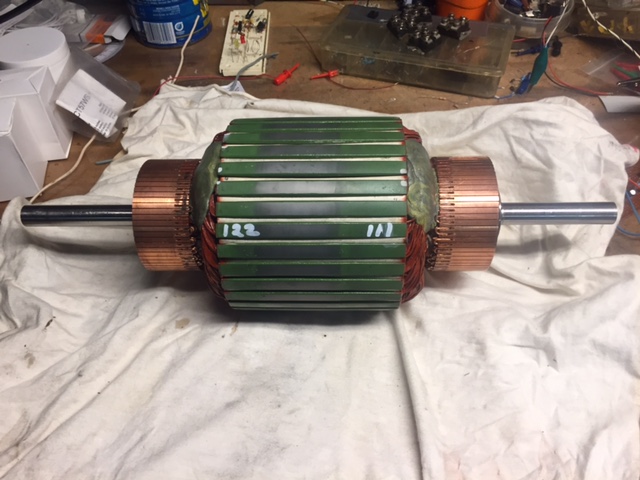

P66 Armature Wind

Greetings all;

At long last, I have the armature ready to go.

It has been balanced in a motor shop and I hope to get the motor reassembled next weekend.

Next, a suitable mount will have to be constructed....

That is, once I figure out what to hook it to.

Lot's of testing first though.

What an interesting project!! Thank you Mr. UFOPolitics!

GlenWV

[Dwane]

Is this suitable?

Hi UFO,
Please excuse my comments on your accent, I have a slight hearing impediment and miss bits of speech. The video is excellent!

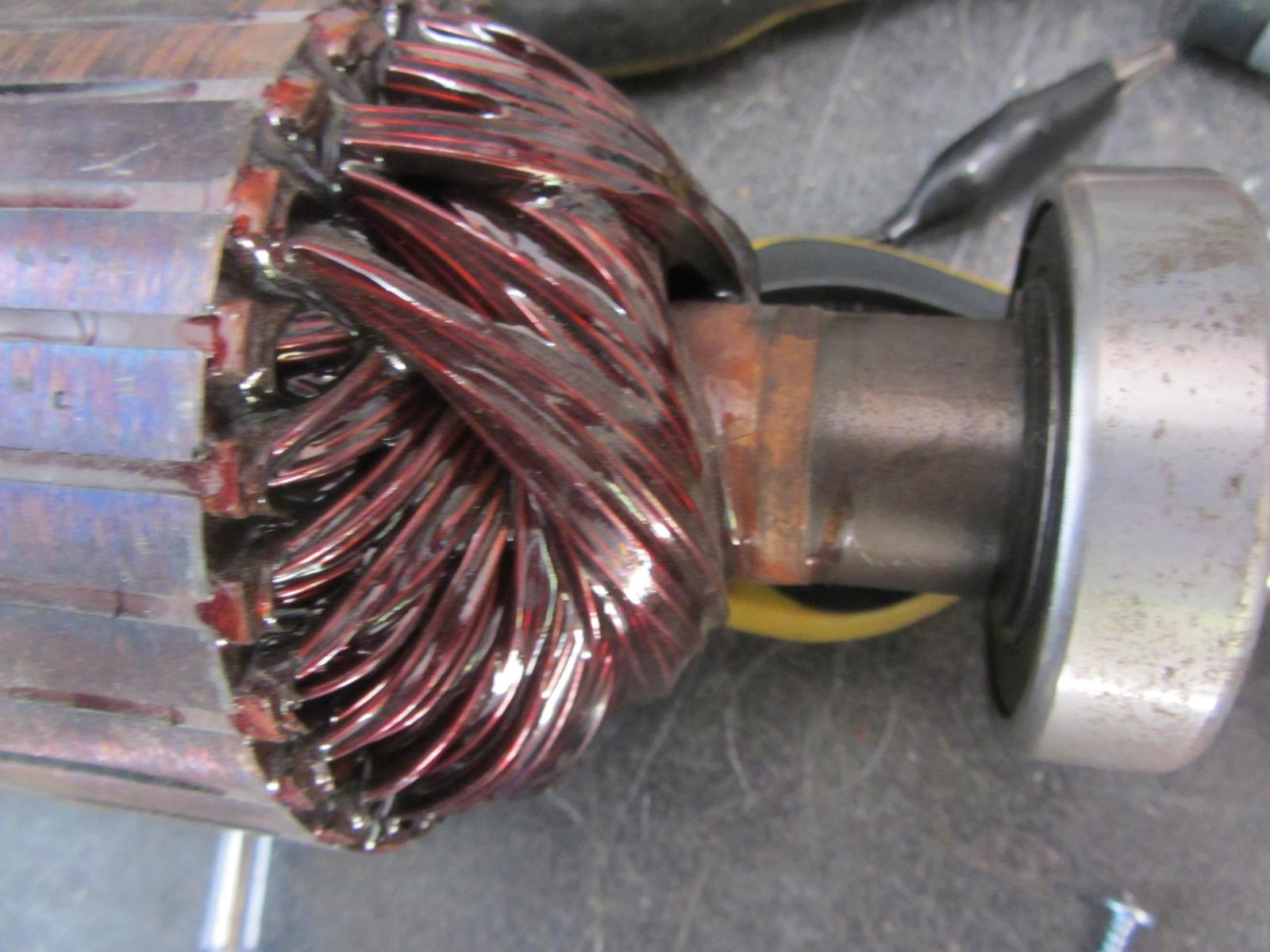

I picked up this Baldor armature for another project - now shelved - a couple of years ago. I have no stator for it. It was rescued from a burnt out motor. It has 28 windings and 56 commutator sections, so I am pleased to see the wiring for this configuration has been demonstrated. It is a heavy cow! It might originally been 3HP.at 90 volts or180 volts. I got it from my local motor winders who were given it as a repair job that did not proceed.

What has really taken my fancy is your fibre glass stator. Do you think that I would be able to run this armature as you have shown in your videos with a fibre glass stator. I am hoping to utilise it similarly to your combination drive generator page 96.

Also, when rewinding this as asymetric, would I use the same guage of wire that is already on the armature?

Many thanks

Dwane

[Dwane]

Hi UFO,
Thank you for taking the time to explain to me what I require!

I have been a bit lazy. I had not reached Page 96 where you show a link to a video that is very similar to what I am hoping to be doing. http://www.energeticforum.com/redire...ure%3Dyoutu.be.

Am I correct in seeing that you are using the driven generator to charge the batteries? Your accent is a bit thick for me to understand at times also with the noise from the coupled drive.

I like the solution above by GlenWV using all north poles. Somewhat similar to the output of John Bedini's free energy generator. But, in this case using dedicated wound coils to explicitly get the job done.

This is looking good for the design I am working with.

Thank you

Dwane

[Ufopolitics]

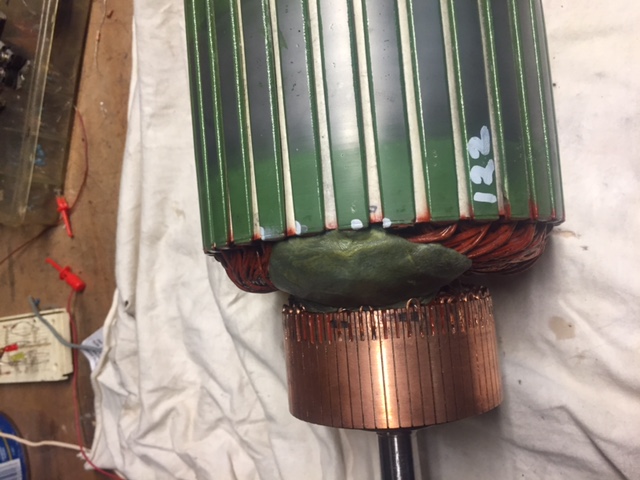

Imperial P66 Asymmetric Winding

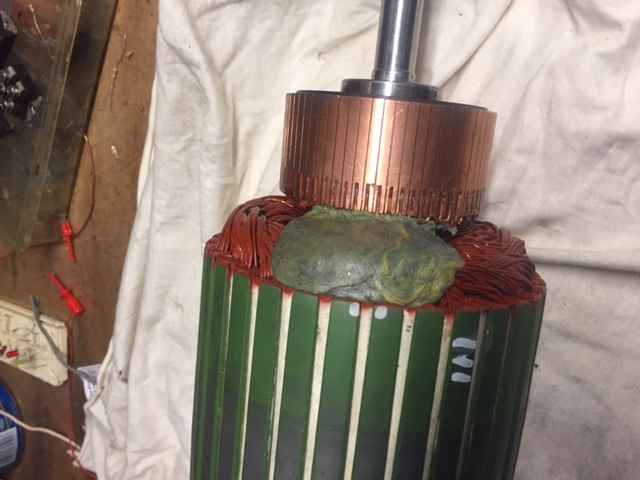

Ready to be taken to a motor rewind shop for balancing. (at last...)
