Imhotep's Radiant Oscillator Video

[ashtweth]

Guys, Gene an engineer/friend i know offered some comments on Lid's video and the effect. Thanks to Gene.

Ash


"If you check out the jln pages there is a circuit shown using the 2n2222
transistor which shows how "negative resistance" occurs in that particular tiny transistor.

The schematic referenced at the jpg doesn't show the base of the 2n2222
transistor being connected to the positive side of the battery. The vid tho,
shows a 5megohm pot on the base of the 2n2222 connected to the positive of the battery.

Just as a "reference" those small CFL's have a "standard rated" draw of 270mA at 120volts. (at least on the several I have that look just like that.) He's driving the lamp as some 200-300mA per his comments on the video, tho he notes also that the light brightens and the current draw decreases somewhat when he connects the HV to an earth ground. If he had a better analog ammeter he could better tell what "real" effect is being seen... usually at the bottom end of an ammeters reading they are pretty inaccurate.

Its interesting but doesn't seem to be adjusting the "real draw" much from the
"normal draw" of just plugging that cfl into a lamp socket off the mains. He
should probably get a scope to connect to it as well so he can see whats going on in the Low Volts side.

Regards,
Gene"

[Aromaz]

Safe the desert trip

Aromaz-- Sorry that I mispronounce your name. It is Aroma-zzzz. I wish that I could get more ZZZZZs. This stuff keeps me awake too. Thanks again for getting envolved with this and sharing.
I did have the 2n2222 wired correctly and the package label was wrong. A warning to others who may buy the Radio Shack package of (15) assorted 2n2222 "like" transistors.
Something very strange is going on with this circuit. I was getting mild shocks at places in the circuit way up stream where there shouldn't be any HV. This was happening before when I was using the Bedini fan circuit. Aromaz when you mentioned the low amp draw and the battery voltages climbing a light went on in my brain. Last night I ran the system a long time, it was stone cold, and the analogue amp meter was hardly registering anything. The coil was humming along and the light was on. If I touched the rehostat leads at the source battery I got a mild shock. In my particular case I may be getting energy from the house somehow from that ground lead. I hope not. I may have to drive out to the desert and run the experiment again.

Lidmotor, desert will be good. Maybe I can save you that. I took it out to my farm last night, new house, new 250cm earth probe (only hammered down 8 days ago). In all I actually had more power and stronger lights. I will put that down to the earht probe since my lab is only using the buildings frame as earth. I set system up about 100m from nearest building and any house wires.

Forgot to take multi meter and camera. There is unlikely any stray voltages there bare those we will find on all land. Farm is about 3 km from beach, nearest high tention wires are more than 1.5 km away, nearest cellphone tower is 2.8km.

[Aromaz]

Toroid on probe

Sounds like you are doing some very nice work , Aromaz

If i could inject an aside: Regarding your idea of the coil at the scope probe, this reminds me of an old trick we used to use to check the RF radiation of devices (quickly testing the effectiveness of shielding schemes without an expensive RF meter or having to go into the Faraday cage, which was a pain):

Simply clip the ground of the scope probe to the tip; creating a "loop", and wave it slowly around / near the device. We used to see quite graphically how RF would "hover" over metallic surfaces and not be shunted to Earth Ground; which is a pretty strange effect when you think about it

Amazing how a simple thing like this can fail to penetrate my old brains.
I did just this, but then added the toroid between the probe and earth!

Amazing how the energy is flowing around. Getting all sorts of readings. Away form the coil - 3m, it all goes quet and just little noise on min scale.

[Bodkins]

Been thinking about what is getting this great setup running,
I guess its the potential difference of the ground. I have had this happen before with the fan in oscillation, pumping the HV out then switching off, you are left with a Suction action in the circuit.
The great thing is Aromaz has worked out a way of triggering the system with the planet. I have found that i can remove the 2222 transister and go into the first Base with the ground. After the first pulse with I start the system will trigger itself .Also when i say ground I can mean Aether because the equilibrium needs to be restore in the system(cheers Braden)And the aether needs to do that Or the ground.
Once this starts to happen it will continue to happen that why nat had 600 volt coming into the system and Aromaz had a voltant increase and or a system running on next to nothing.
Well That What I Think(Hope) is happening.
Take Care B
ps.Got More scope shots coming with a Three dimensional Wave will upload tomorrow.
Thanks Aromaz

YouTube - Bodkins 30 Aromaz rep3.AVI

[Bodkins]

YouTube - Bodkins 28 Aromaz rep1.AVI

YouTube - Bodkins 29 Aromaz rep2.AVI

got some scope shots next video

@Braden dont worry working on harold too

[Lidmotor]

Sleepless nights

Aromaz-- Sorry that I mispronounce your name. It is Aroma-zzzz. I wish that I could get more ZZZZZs. This stuff keeps me awake too. Thanks again for getting envolved with this and sharing.
I did have the 2n2222 wired correctly and the package label was wrong. A warning to others who may buy the Radio Shack package of (15) assorted 2n2222 "like" transistors.
Something very strange is going on with this circuit. I was getting mild shocks at places in the circuit way up stream where there shouldn't be any HV. This was happening before when I was using the Bedini fan circuit. Aromaz when you mentioned the low amp draw and the battery voltages climbing a light went on in my brain. Last night I ran the system a long time, it was stone cold, and the analogue amp meter was hardly registering anything. The coil was humming along and the light was on. If I touched the rehostat leads at the source battery I got a mild shock. In my particular case I may be getting energy from the house somehow from that ground lead. I hope not. I may have to drive out to the desert and run the experiment again.

[jibbguy]

'Scopes as cheap RF meters

Sounds like you are doing some very nice work , Aromaz

If i could inject an aside: Regarding your idea of the coil at the scope probe, this reminds me of an old trick we used to use to check the RF radiation of devices (quickly testing the effectiveness of shielding schemes without an expensive RF meter or having to go into the Faraday cage, which was a pain):

Simply clip the ground of the scope probe to the tip; creating a "loop", and wave it slowly around / near the device. We used to see quite graphically how RF would "hover" over metallic surfaces and not be shunted to Earth Ground; which is a pretty strange effect when you think about it

[Bodkins]

I had all this around a month ago no sleep and light everywhere
got a picture ffor you and some videos later there uploading
Back soon

[Aromaz]

Brain dead ? 0.79 mA ????

I am off to TRY and sleep. This day really mixed my brain. I went out to buy more brand new CF Lights - just to break them open!

Here you go:
5x18W phillips globes (gas tubes only), 1X18W sylvania, 1x Toshiba 18W tube (Warm light) and 1x Phillips 32Watt long tube - Total 158W. Negative from coil onto one end of the series of 6x 18W CFl's, the shorter 18W Toshiba is also connecting here. Earth wire to the end of the long phillips 32w tube, the Toshiba is not connected to anything on far end. Finally the high voltage line connects in middle between CFL and long 32w Tube. All light up, barely flikker and each about 45% of the 240V illumination as tested with Minolta camera light meter.

To answer your - and my question - I connected the amp meter, but the meter's resistance caused lights to dim probably 30%. Anyway, that is the second photo. I can not believe it, so I connected an analog meter with scale of 0..50 mA - it barely moved.

Lastly, yes, the lights does have somewhat of illumination without being connected at all - wireless transmission - though I did not persue this direction much because of my weak coil.

I failed all day to get second coil either in series or parallel connected i.e. Modified Imhotep circuit. Maybe someone can help out with this one while I try to sleep?

If you want to see a totally confused Scope - put a small toroid coil on the end of the probe and move that around the visinity of this complete setup.

Lastly: These photos were taken with camera flash, thus less illumination appearance in lights than when not using flash.

Have a nice day!

[nat1971a]

YouTube - TESLA'S RADIANT ENERGY WIRELESS TRANSMISSION - UPDATE 19 /EDWIN GRAY HYBRID CIRCUIT


truckloads of wireless lights anyone?

[braden]

demo of plasma spin

Here is a very interesting experiment looking at plasma spin
YouTube - JK Plasma Magnetics Experiment 1

[nat1971a]

YouTube - TESLA'S RADIANT ENERGY WIRELESS TRANSMISSION - UPDATE 18 /EDWIN GRAY HYBRID CIRCUIT - many wireless lights



anyone for wireless lights?

[Aromaz]

Lite This one

Sure do capture me more and more. See photo below.

18W 220v Fluorecent tube is connected to HV line from coil.
Two other CFL tubes is connected in series to the negative line from the coil.

As soon as they are closer than 60cm from each other, both sets lit up. Only single connection line. AND they are bright.

Now, play around with your hand by touching different part - but not the HV line. Two of my sets now running no-stop 9 hours and all parts are room temperature - cool. When ground is removed, there is even high voltage that you can feel on both positive and negative terminlas of battery!
Mystical, What is this? Dare I say the dream words - Radiant/Vacuum??

Just after writing above about battery I thought to go and check the voltage. My battery charge went UP !!!! From 12.09 volt this morning to 12.48 this afternoon!!!! The other two systems were fully charged at 12.48v; still the same and 12.51v this morning now 12.53v. I might have made a mistake, this can not be? Could be athmospheric or temperatue? There is definately no radiant spike (closure) and definately no back EMF (terminate). Also with the whole circuit been broken by the gas tubes there is not current possible? I will have to look more closely into this.

I envey those in the Western world. My coil is real low class, cheap budget no-name brand - output 6,800 volt on Imhotep original radiant circuit. I am sure some of you will find very interesting results with better coils. Nothing better to be found around. I plan on ordering a parcel of good stuff from States soon.

Frequency emited is high and strong. I can use my electronic multimeter without any cable attachements (pulled out) and read the fq anywhere near and around the setup, within distance of 50 to 80 cm. With cables plugged in(antenae) , but not connected the range goes up to about 2 meters. At some spots i.e. 45 degree up from coil, the frequency changes suddenly down from 4,800 to 300/400.

WARNING: My mobile phone does not work within 1.5 meters from system.

Now I need some sleep......no, make it a nice good spa massage while I think

[Aromaz]

Nope, I am more spooked !


Imhotep / Aaron - I think I would need some knowledge here.
Is it possible to refer to dr. Peter Lindeman?
I feel like a dog chasing a truck here, caught up with it and does not know what to do now! I am reasonably sure there must be some sort of explanation.

Now I thought "Let me see how well it charges a capacitor and what bang it will make; out comes 80Vdc 10,000pF. Connect HV lead to positive, negative to battery - exactly in place and position as CF lights. Charge 10 seconds, removed - short....nothing?

Checked wire - disconnected and hold close (1 to 6 mm) have spark jumping; each time all the time. Tried with spark gap, tried with dead connect - same results. All the time the coil sings its song, for sure energy is flowing!

Charged 30 seconds, removed - short .....nothing :surprise:
Turned around HV to negative, charged 20 seconds....nothing
Connect capacitor to battery, one second and 10 seconds, short BANG! Each time. Tried with 10Vdc 400pF cap - same dead silence with circuit.
Removed earth wire - same sequence same results.

Reconnect 1 light - light up, reconnect 4 lights - all normal light up.

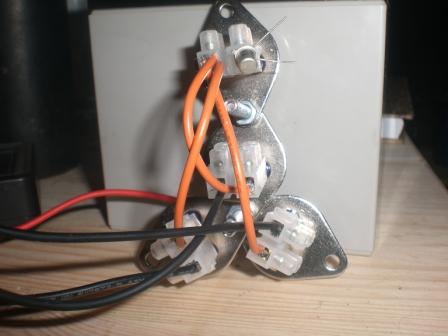

@Lidmotor: I checked my 2N2222, according to my circuit diagram it is right. Looking at face, Left is #1 Emitter, center is #2 base right is #3 Commuter. Attached photo of circuit. Blue is to Base of 3055, Red from Positive on battery and black is Ground.

Four tubes, connected to earth I have around 70% same as normal 220V wall socket light (I used old Minolta SLR - before digital age - camara to measure light) - running from 12V dc battery, lightest cheapest non-brand automotive coil - and only drawing 11 mA at positive pole of battery. Yes, when sparking the negative terminal to last light the amps drops to 7 mA.

Lidmotor - thanks for the duplication, your work and input. As usual - nice clear video. Much appreciated.
Name is Aroma(z) like in nice smell from natural essential oils - and the end of all Z.

[hh1341]

Guys the RV's number is 1.618
Forgot to post.

Ah......the golden ratio!

Carl
