  • Jules Tresor
    replied
    Hi scratchrobot, do I have to read the all thread to find the details on your setup, or do you have a file or a website with all resumed ?
    Thanks for sharing

    Leave a comment:


  • scratchrobot
    replied
    Originally posted by Bit's-n-Bytes View Post
    What I was saying is that if you wanted to try and use the "input" batts drive the pulser and then "charge" the "input batts" (kind of a self runner) then you would have issues and could fry components.

    Good Job

    Bit's
    Thank U, I learned a lot from your circuit's

    I made another video with the solar panel as input and the input current stay's stable

    SolarPanel_In-Out

    I also found some video's I made a while back of my Scalar Charger (self runner), maybe someone find's them interesting...

    Scalar Charger1
    Scalar Charger2

    scratchrobot

    Leave a comment:


  • Bit's-n-Bytes
    replied
    Originally posted by scratchrobot View Post
    Used 2 battery's in series to charge 1 battery, fried nothing

    Made 2 movies because I have only 1 Amp meter.

    Input
    Output

    This is the circuit I used
    [ATTACH]5552[/ATTACH]

    scratchrobot
    What I was saying is that if you wanted to try and use the "input" batts drive the pulser and then "charge" the "input batts" (kind of a self runner) then you would have issues and could fry components.

    Good Job

    Bit's

    Leave a comment:


  • scratchrobot
    replied
    Originally posted by Bit's-n-Bytes View Post
    Looking great. When you use batterys in series as the input, this will work great as well. If your intent is to charge them from the same device, becareful! A ground loop is created and you will start to fry things. I am stilll trying to work through this issue with mine.

    Bit's
    Used 2 battery's in series to charge 1 battery, fried nothing

    Made 2 movies because I have only 1 Amp meter.

    Input
    Output

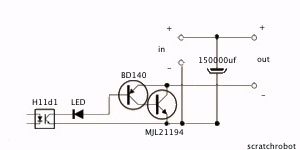

    This is the circuit I used
    Click image for larger version

Name:	pv-pump.jpg
Views:	1
Size:	19.9 KB
ID:	449075

    scratchrobot

    Leave a comment:


  • Bit's-n-Bytes
    replied
    Originally posted by eternalightwithin View Post
    If there is a current build up from this groundloop, couldn't you put a current sensor in there that would detect current level and peroidically shunt excess to a cap or another batt?

    David
    I am trying to work with steering diodes at the moment to isolate. Will post when I am able to resolve.

    Thanks

    Bit's

    Leave a comment:


  • eternalightwithin
    replied
    If there is a current build up from this groundloop, couldn't you put a current sensor in there that would detect current level and peroidically shunt excess to a cap or another batt?

    David

    Originally posted by Bit's-n-Bytes View Post
    Looking great. When you use batterys in series as the input, this will work great as well. If your intent is to charge them from the same device, becareful! A ground loop is created and you will start to fry things. I am stilll trying to work through this issue with mine.

    Bit's

    Leave a comment:


  • Bit's-n-Bytes
    replied
    Originally posted by scratchrobot View Post
    Made another Video

    Tomorrow I will try two battery's in series as the input.

    scratchrobot
    Looking great. When you use batterys in series as the input, this will work great as well. If your intent is to charge them from the same device, becareful! A ground loop is created and you will start to fry things. I am stilll trying to work through this issue with mine.

    Bit's

    Leave a comment:


  • scratchrobot
    replied
    Made another Video

    Tomorrow I will try two battery's in series as the input.

    scratchrobot

    Leave a comment:


  • Matthew Jones
    replied
    Originally posted by Jules Tresor View Post
    Good morning guys,
    John Bedini is the greatest electrical genius of our time
    I would have to encourage you to read back through the thread a bit. I believe this to be the only thread in the forum that truly discussing anything close to overunity (whatever that word is worth).
    Nothin but good stuff...

    Matt

    Leave a comment:


  • scratchrobot
    replied
    What are those tubes?

    Leave a comment:


  • nvisser
    replied
    I also wish you were an expert in electronic, because you would found out that it is not a free energy device but a very effective battery charger.

    Leave a comment:


  • Jules Tresor
    replied
    It's on internet since many years

    Good morning guys,
    lost in the sea of free energy devices, you forgot that major invention from John, that is going to manufacture now: his solid state battery pulser, that he names now Tesla Solar Switch.
    I have always be surprised that nobody ever tried to replicate it, it's the most simple of device.
    Basic logic chip, transistors and capacitors ... exactly as you saw in the video by John that have removed prior to start selling the device.



    Abstract: Technical Field:
    (0001) The invention relates generally to a battery pulse charger using a solid-state device and method wherein the current going to the battery is not constant. The signal or current is momentarily switch-interrupted as it flows through either the first channel, the charge phase, or the second channel, the discharge phase. This two-phase cycle alternates the signal in the two channels thereby allowing a potential charge in a capacitor to disconnect from its power source an instant before the capacitor discharges its stored potential energy into a battery for receiving the capacitor's stored energy. The capacitor then disconnects from the battery and re-connects to the power source upon completion of the discharge phase, thereby completing charge-discharge cycle. The battery pulse charger can also drive devices, such as a motor and a heating element, with pulses.

    full patent here: Zero Point Energy - John Bedini Solid State Generator - MDG 2007

    I wish I was an expert in electronic, because I would have free electricity since a long time, but for my private use, because it's patented
    Is it a US only patent, or worldwide cover ?!

    John Bedini is the greatest electrical genius of our time

    Leave a comment:


  • scratchrobot
    replied
    Originally posted by nvisser View Post
    Do you current limit the 24V input to the 120 000uf cap bank?
    I found that to charge up such a huge bank with 24V draws a lot of current if not limited. I would love to know how you fully charge them up in 1 sec with only 400mA
    I am using a 'Stabilized DC Power Supply 5 - 14V 2.5A' BUT I modified it by turning a variable resistor that was inside and now I can regulate it to 24V
    The current I can not regulate.
    I find that the higher the voltage the higher the current pulse ratio is, for example at 18V you get 1A>2A and at 24V 2A>6A pulse.
    For higher voltage 'radiant' input your Ser/Par version works and if the input voltage is below the battery voltage or one want's to charge a battery on it's own Par/Ser is the way to go

    Here a picture of my tiny 18V solar panel, I have it inside behind the window and it is working with your version of the circuit without ALL the diodes
    Click image for larger version

Name:	TS_PVAmp_Panel.jpg
Views:	1
Size:	1.37 MB
ID:	449061
    And here a movie of the output to the battery, Much better result than my 4 battery TS

    Forgot to mention: In the video you can also see what happens when the clouds get in the suns way.

    scratchrobot
    Last edited by scratchrobot; 05-18-2010, 04:47 PM.

    Leave a comment:


  • crackahcrackah
    replied
    Originally posted by Matthew Jones View Post
    @bits
    Have you tried to make it charge its own power source yet? IE a scalar charger setup.

    Good Work
    Matt
    I'm about to do the same with a DC impulse circuit that I have. I just fixed my oscilloscope CRT yesterday and was able to hook up my circuit to see every thing working as it should. I want to make a capacitor bank for my source and for a separate charge bank as I only have batteries set up now and they are not very accurate. I recorded a charging effect on them back in january and have been testing various configuration changes with the toroidal inductor that I use to make the spike, and the toroidal inductor that I use in directing the scalar wave (just as tesla did in his HF patents). I'm hoping to have a cap. bank together in a few days to reliably assess energy tapping.

    Leave a comment:


  • nvisser
    replied
    Do you current limit the 24V input to the 120 000uf cap bank?
    I found that to charge up such a huge bank with 24V draws a lot of current if not limited. I would love to know how you fully charge them up in 1 sec with only 400mA

    Leave a comment:
