Joule Ringer!

[ehsanco1062]

Hi Ehsan,
I want you to first start with changing the name to

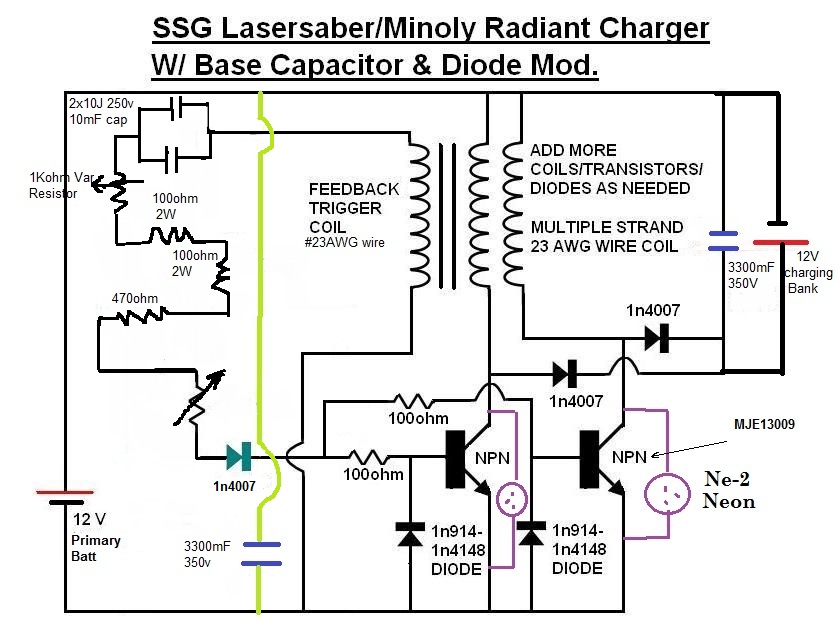

John Bedini's SS SSG with Cap/Diode Modification

the 2x10J 250v caps go from the top of the trigger coil directly to the 1n4007
(therefore - in parallel with the pots and resistors)
the two pots are in series and in parallel with the resistors and caps.

also, look at the bottom trigger wire - needs to terminate to the primary positive.


the first transistor gets two extra resistors
remove the 1n914 and replace with a 10k resistor
add a 20k resistor base to collector.

look here:

http://www.energeticforum.com/renewable-energy/7051-joule-ringer-28.html#post170309

all you have to do is add the caps across the pot and the diode to the base.
I grantee your resistance to the trigger base will need to be different.

definitely stick with the 100 ohm resistors I have on all the bases. the 220's will only be needed for higher voltages.



Patrick

Hi Patrick
I tried here to put your noticed as I understand it from you .
can you please check it again here .

thank you

Ehsan

[Cherryman]

hi all

these video are probably relevant here

thanks to all contributor

and good luck at all

Laurent

caduceus coil on delamorto 1.wmv - YouTube

Great Woopy !

You tell the buylb heats up a lot, can you measure or estimate the temperature of the bulb?

This might make a very cheap kow power heater.

[kcarring]

@Woopy

Very cool!
Could you power up the fan alternatively and see what your draw is?

[minoly]

Hi Ehsan,
I want you to first start with changing the name to

John Bedini's SS SSG with Cap/Diode Modification

the 2x10J 250v caps go from the top of the trigger coil directly to the 1n4007
(therefore - in parallel with the pots and resistors)
the two pots are in series and in parallel with the resistors and caps.

also, look at the bottom trigger wire - needs to terminate to the primary positive.


the first transistor gets two extra resistors
remove the 1n914 and replace with a 10k resistor
add a 20k resistor base to collector.

look here:

http://www.energeticforum.com/renewable-energy/7051-joule-ringer-28.html#post170309

all you have to do is add the caps across the pot and the diode to the base.
I grantee your resistance to the trigger base will need to be different.

definitely stick with the 100 ohm resistors I have on all the bases. the 220's will only be needed for higher voltages.



Patrick

[xee2]

caduceus coil on delamorto 1.wmv - YouTube

Great video. In your next video please show how bright bulb is powered directly from the 24 volts @ 1.9 amps. This may not be possible since the bulb resistance may be too high to allow 1.9 amps of current at 24 volts.

[woopy]

hi all

these video are probably relevant here

thanks to all contributor

and good luck at all

Laurent

caduceus coil on delamorto 1.wmv - YouTube

[Allen Burgess]

Joule enhancement.

Quote from emc4u2

"I measured the AMPS across the battery, so it is the total AMP draw. This shows the enhanced version is way more efficient. What it actually shows is that in the non enhanced version, there is a amp draw for the first impuls and secondly over the secondary coil in series, with the LED and n series with the battery, which drains the battery. The enhanced version, just creates a field in the bifilar coil and then only discharges over the LED not over the battery. saving power".

emc4u2 1 year ago

[ehsanco1062]

[b_rads]

Christmas Present to myself

@XEE2

Special thanks to you for all your hard work on these inverters, as the implications for some are actually pretty large. Namely, a group of my friends living off grid. I did a quick, yet interesting experiment, shown here, that iterates the validity and necessity of your work.

Thanks Again

How bad cheap commercial inverters really are:
LED light on Inverters - MotoMaster 011-1839-4 / P175 - YouTube

@Xee2:




@kcarring:


Brad S

[Gedfire]

Tuning the Joule Ringer

Hello All,

Please outline the steps that must be used to tune the Joule Ringer.

What was the purpose of the magnet on top of the Joule Ringer?

Where can I get Meth glass?

What is a suitable alternative to the methglass?

How was the second coil or toroid arranged? Like this: COIL ---- Capacitor----- coil in series ?

What was the specs on the caps on the toroid?


Was it non polarised?


Any successful replications since?


Thanks all !

Ged

[SkyWatcher]

Hi folks, Hi kcarring, yes i was pointing that out before, these homemade inverter jobbers can be more efficient for sure.
Also want to address your standard signature comment, "Tar sands ? or... Sandy Tires? Ride your bike to work. Complete dependency comes from poor consumer choices."
The blame game never solved any issues, we are just as responsible as many in the dominating positions of so called power that are actively and knowingly maintaining these oppressive agendas.
At least people are starting to wake up.
I AM a sovereign infinite consciousness being.
Not a consumer, not a PERSON and not above or below another, same as everyone else.
peace love light
tyson

[kcarring]

@XEE2

Special thanks to you for all your hard work on these inverters, as the implications for some are actually pretty large. Namely, a group of my friends living off grid. I did a quick, yet interesting experiment, shown here, that iterates the validity and necessity of your work.

Thanks Again

How bad cheap commercial inverters really are:
LED light on Inverters - MotoMaster 011-1839-4 / P175 - YouTube

[xee2]

Another circuit for using four terminal transformer to light 120 VAC LED bulb. Also not very bright.

[ehsanco1062]

Hi Ehsan,
I don't know that the exact part matters that much here. I would imagine electrolytic is better.
I have an almost exact same coil (100ft longer) using MJL21194's, and I don't have the blue caps - I do have the yellow cap on the trigger and everything else is identicle. This build charges fine but not as well as the one in the vid...
still working things out...
you really have to play with that cap and pot/watt...
I wish I had Romero's scientific patience.

Patrick

[xee2]

Circuit for lighting 120 VAC LED (or fluorescent tube) using four terminal transformer (simulated by not using one terminal of CT transformer). This works but it is not very bright for the power used.
