Imhotep's Radiant Oscillator Video

[Inquorate]

Wow

Been busy with life stuff for a few days, and come back to find everyone WAY ahead..

Great work Aromaz.

@bodkins, am I right thinking the circuit will work without 2n2222, just ground to first 2n3055?

I was going to post the following.. Guess I still will.. Great way to generate signal frequencies. I'm inclined to think along lines of Aromaz now, that letting circuit self oscillate is good way forward, but having done heaps of research and gotten all the parts, I might build my little signal generator anyway - should generate compression waves only meters long. That'd make wireless receiving coils the 1/4 of wavelength tesla stipulated would give high gains in power.

This stuff just blows your mind eh..

/// Here's the schematic I'm going to use as a signal generator, except adding a 12 way switch to select different coils, uh to mh. Also, another 12 way switch to select sets of caps, 1-10p variable, 10p-80p variable, 60-160p variable, 1n, 10n, 100n, etc. Also, going to add 1m ohm pot somewhere, either side if inductor, methinks.

Image:NPN Colpitts oscillator collector coil.png - Wikipedia, the free encyclopedia

And here's link to pic using Tranny in colpitts oscillator that has earth input to base..

Colpitts oscillator - Wikipedia, the free encyclopedia

- it's fig 1

[Aromaz]

A Magical wonder

Very interesting indeed Aromaz. Maybe you could try a rotating coil to see what happens? There is a huge secret in motion of the coils and transfomers(ie variocoupleers) I believe. Aehter will be attracted to a vortex motion.

I wish I had access to all those wonderful things. Here, there is no possibility of even finding such thing, only if building it oneself. I do not know exactly how this will work and how to put together.

Already I am daring onto new grounds for a novice like me: Building my own capacitors and now working on a 'gasious filter' as it was described by T Moray and Tesla.

@Lidmotor:
I removed two of the 2N3055's (Remaining with 1x2222 and 1x 3055) and system worked, but sometimes needed a kick-start with earth wire (or finger touch) as per your video. Probably why I would never have picked this up on my much older circuits - or why nobody got it from a Darlington pair as yet.

So I put one 2N3055 back in same old position - BUT and this is nice - I taped the emmiter of to second coil + and that coil directly from battery negative - complete new set of lights on HV.

Then I added the third 2N3055 and tapped that emmiter of to a third coil - and used up all the spare lights in factory. Have now 15 lights on - same illumination as 3 to 6 units before - all still running from one 12V battery, 1x 2N2222 and then each branch of to its own 2N3055 transistor, coil and light sets - all connected to negative of battery. Playing aorund with earth gives someplaces a brighter and some places a dimmer light. Strange this this ground.

Best of all:

1-Battery
> Amp meter on positive
> 2N2222
>1st 3N3055 (Master) > 2N3055 > Hitachi coil > 6x CFL tubes
> 2N3055 > noName coil > 6x CFL tubes
> 2N3055 > NoName coil > 1x CFL tube
1x 18W Phillips F-Tube
1x 32W Phillips F-Tube

AND - All of these are fairly bright
at drawing of only 0.62 mA !!!!

Now I am off to big supermarket to make them happy. Gone off their shelf will be another 20 plus Phillips 23W CFL lights and some more fluorecent tubes. At least I am going to end up with a huge stock of CFL controlers.

Tonight I am going to push 1x 12V battery and 1x 2N2222 with 4x 2n3055 transistors each feeding one junk coil to the absoluut limit with as many lights as they can take till failure OR lights goes very dim.

Next (? Tomorrow ? ) I want to open two coils and see how it will be possible to join them in series for more power.

I feel like a light myself now.

[Aromaz]

No 2N2222 No working ..... yet

@bodkins, am I right thinking the circuit will work without 2n2222, just ground to first 2n3055?

I tried removing the 2N2222 - all dead, even with earth or life on 1st 3055. Nothing. I also tried to replace it with all transistors, IRF's and Mosfets I have on site - some 58 different types - not deal. Seems there is something hiding in the 2N2222 which is the basis of this whole setup. See earlier post from 'ashtweth' re NDR. There might be a big thing in that concept.

Till later, another through night coming up. Should get better bed in my lab than the current couch.

[Inquorate]

@ Aromaz

Re: linking coils together..

Came across this site a couple of days ago. See if system still self oscillates with a variation of the dual coil schematic.

RMCybernetics - DIY Homemade Ignition Coil Driver

I think I may make a mini tesla transmitter as in patent 1119732.. All the tesla coils I see recreated leave out the tube being same length as secondary. And max area thus max capacitance of transmitter 'globe'

Also going to make a few caps, just 9 inch square Alfoil glued either side of 10 inch square window glass.

Ps, vacuum diodes thus far: not able to make high enough vacuum.

[Bodkins]

YouTube - Bodkins 31 Aromaz rep3.AVI

[Aromaz]

Vacuum Diode or Triode or.....possibility

Re: linking coils together..
Ps, vacuum diodes thus far: not able to make high enough vacuum.

DUAL COIL: Thanks, I tried and failed. Now I have a singe coil on a singe transistor – reasonable, but will soon try to combing the intestines of two coils in series.

Inquorate; My sincere apologies for an oversight (or is it delayed contribution ?) I have also been interested in your diode dilemma. In fact my very first own creation was somewhat of a modified Bedini circuit and it had over-unity. Unfortunately the complete thing went up in smoke – including beyond recognition was a vacuum triode that I harvested from an old junk radio in Bangkok. Since I looked everywhere but can not find one that looks exactly like that one. That was something with a JAN code and the old radio was a two-way radio ham’s Telefunken from late 1940’s – not working and seemed to been in a serious accident. However, this triode survived and gave me many interesting hours. Only later I discovered what JAN means and there are plenty of items with that code prefix.

Back to Diode/Triode. Have a look at the common fluorescent tube starter, see attached photo (thumb size item). I think this could be modified and most likely also be built in a combination package like Triode. Another thing I have been thinking about is to use vacuum with heated environment before sealing the glass tube. Or try to find a glass maker around your location and talk to them about making this ‘thing’. Remember in the days of Tesla and Moray they made these things by the truck loads and for sure factories then were far from today's home brew abilities.

Lastly and possibly the better option to try is to replace the vacuum with pure nitrogen. That might be a worth while option to try out; since nitrogen has suitable properties to possibly prevent spark-over, heat, conduction and flame. We used it in all sorts of electronic equipment in the mines and oil refineries of good Old South Africa.

[Lidmotor]

Open base on 2n2222 or not

The circuit that I showed in my last video has the base of the small 2n2222 configured in two ways. Either open (except for a clip lead attached) or it is connected to a 5M pot that is led to source voltage. If the base is left open it usually needs a kick start to get the system running but once running the thing runs at about 70 mili amps, the whole circuit becomes electrified with HV, and you can light multiple CFLs. It is that configuration that has me facinated. I think that in this setup it is feed back that triggers the little 2222 and that the trigger energy is being transmitter----THROUGH THE AIR. Also to get the amount of energy that we are seeing----I think that we are getting help from mother nature. This coil is going into a resonance and opening a door.

Lidmotor

[Bodkins]

Inquorate
i can get the thing running with no 2222 and the base connected to ground just give it a kick start
Not saying that i dont need one just blow it and tryed to keep the light on

[ren]

AND - All of these are fairly bright
at drawing of only 0.62 mA !!!!

Typo? Point 62 of a milliamp (0.62mA?) 62 milliamps? 620mA? What setting is your multimeter on Aromaz, and what is the reading? Ive said it before too, all of these measurements need to be comfirmed with a analogue gauge. I dont even use my digital for amp draw any more.

[gnino]

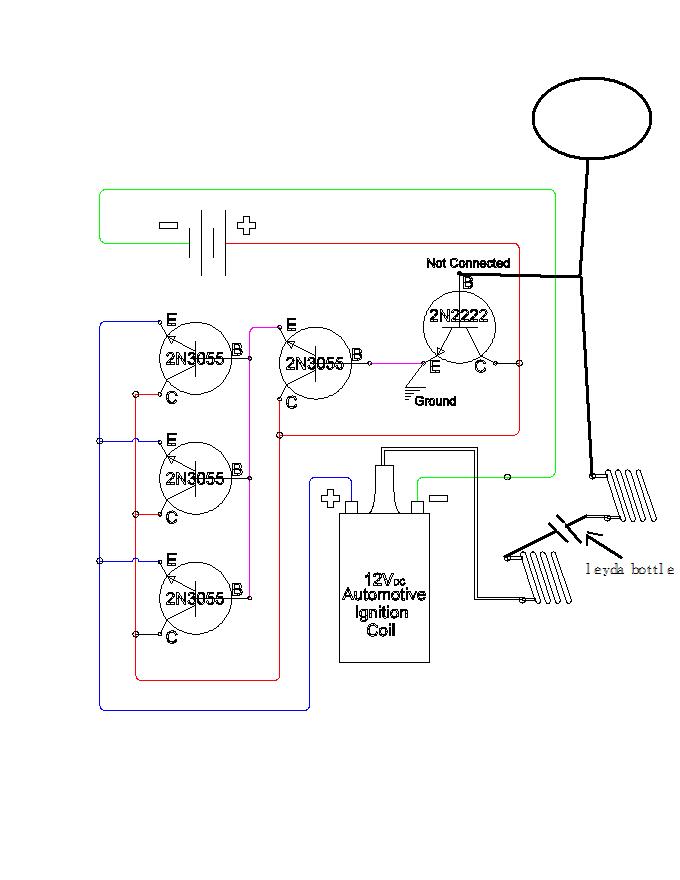

i guy's i found a solution for "2n2222 base" question
i hanve connect at hv output
amazig boost in the light

the leyda jar i think is replaceable with neon bulb or spark gap or any stuff help you to find the resonance

p.s. the leyda jar sing

[Inquorate]

@ dulcet tones

Hey bodkins, I just loaded up your #30 vid, nice scope shots. The missus dropped stuff in the kitchen when your voice came on. Tee hee. My brother coming over for the weekend, see you guys in a couple of days. Take care.

[Aromaz]

Impossible readings

Typo? Point 62 of a milliamp (0.62mA?) 62 milliamps? 620mA? What setting is your multimeter on Aromaz, and what is the reading? Ive said it before too, all of these measurements need to be comfirmed with a analogue gauge. I dont even use my digital for amp draw any more.

@ren: See my posting #1301 for foto and details.
I do share your sentiments. And I did check with two different brands of digital multimeters as well as 50 mA scaled analog. You can zoom in on settings of the digital amp meter. I have done multiple SG and SSG Bedini's thus I am aware - and sceptic of measuring instruments; but that is the only option we have now. Further, after running 11 CFL's through 8 hours of 'going home' plus all play yesterday with various modifications using only my smallest 12 Vdc Lead Acid battery, the voltage went down 1.72.

[ren]

@ren: See my posting #1301 for foto and details.
I do share your sentiments. And I did check with two different brands of digital multimeters as well as 50 mA scaled analog. You can zoom in on settings of the digital amp meter. I have done multiple SG and SSG Bedini's thus I am aware - and sceptic of measuring instruments; but that is the only option we have now. Further, after running 11 CFL's through 8 hours of 'going home' plus all play yesterday with various modifications using only my smallest 12 Vdc Lead Acid battery, the voltage went down 1.72.

Fair enough Aromaz, I never know just how far people are in their understanding and knowledge of all things electrical. It pays to question these things to make sure we are all on a level playing ground so to speak

Looks like you have correctly measured your devices and you are aware of the questionable state of some meters. Sorry to butt in gents, please continue


PS: Here is a pic of the toroidal PWM circuit I have been playing with. I was aiming for maximum light from a low voltage source. If I switched that light off the room was totally dark i.e. that light is the only source of illumination in this photo. No long exposure either, we all know how pictures can be deceiving. I simply covered the flash on the camera with my finger. I might make another video soon, the light is too bright to look at directly for any length of time.

[Aromaz]

Appreciation

@ren: Appreciation

Absolutely no offence or regret. I always play the 'Devils Advocate" besides the fact I am just a pure 3 month old baby in electrical/electronics.

@Lidmotor: Today I made part of my video recordings (I am lazy to write ‘lab notes’) and burned my finger! I had the 2222 > 1x 3055 > 1x3055 setup with coil and 6 CFL’s. Was playing around to see where what will trigger the system. Touching battery poles – went off. Touch or hand near base of 2222 went on. Moved and touched other parts – HV from coil ICE cold. Really at least 5 degrees cooler than any other part. Everything else was room temperature – EXCEPT for the 3055 feeding to the + of the coil – THAT one burned my finger.

Soon I will get this video uploading sorted out.

[Lidmotor]

Aromaz Ice Machine???

Aromaz-- I was not going to say anything because of possible ridicule but I noticed that the coil was cold the first day that I ran the experiment. The 2n3005 is the hot part on mine also. The day that I noticed the cold coil I had just watched something on tv about endothermic vs exothermic chemical reactions and wondered if this phenomenon would apply to electronics. If we pull energy into a system from the environment rather than releasing it the effect may be coldness rather than heat. I read somewhere that Tesla could heat or cool a room using one of his systems.

Ren-- I like your bright light. I got similar result with the inverter that I built a ways back. It took about 1.5 amps to get the light to come on blinding bright. If you feel like it give us a sketch of your circuit. I am able to run Aromaz's circuit on about 70 mili amps at dim light and have not been able to get super bright light out of it yet. I can get good light in multiple bulbs at about 300 mili amps. I will try Gino's idea with the 2222 base and see how that works.

Bodkins-- I will try to run this with no 2222. You may have been able to do this because all the transistors are bunched together. A feed back thing?

Does anyone know why there is HV all over this circuit? Can or should we try to get rid of it? My version of this thing is a real shocker.

Lidmotor
