Use for the Tesla Switch

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Sobakin
    replied
    I've done testing switch on 21W bulb load, working time was 1 hour 30 minutes:
    30 minutes, then swap batteries, rest for 5 minutes;
    30 minutes, then swap again, rest 5 min;
    15 minutes, swap, rest 5 min;
    15 minutes.
    - and after that batteries was almost completely discharged (loaded transformer output less than 8V).
    Now I'll charge them and try some light load, something about 2W, propeller from computer cooler, for example.
    Last edited by Sobakin; 10-07-2011, 12:06 AM.

    Leave a comment:


  • citfta
    replied
    Thanks to Bit's and Sobakin,

    I tried both programs on the simulator and they both seem to work. I had to adjust the timing on Bit's program slightly but Sobakin's seem to be dead on without any adjustment. I'll be able to tell better when I get back to running the TS and can look at it on the scope under real conditions.

    If anyone else is planning to use the Picaxe 18x you need to look at the timing on a scope because my modified Radio Shack transformer seemed to transfer the power to the secondary better after I got the timing pulses even.


    Carroll

    Leave a comment:


  • Sobakin
    replied
    Originally posted by Bit's-n-Bytes View Post
    Try this;
    setfreq m8

    main:

    pulsout 2 , 200
    pause 2 ;adjust as needed
    pulsout 3 , 200
    pause 2 ;adjust as needed


    goto main




    Thanks

    Jeff
    I was never program microcontrollers, but I feel that this variant will be correct too:
    ---------------
    main:
    pulsout 2, 200
    goto _delay ; this delay is for symmetric waveform
    _delay:
    pulsout 3, 200
    goto main
    ---------------
    As we actually don't know how many tacts or microseconds use "goto" instruction, we simply add another same instruction.

    Leave a comment:


  • citfta
    replied
    Thanks Bit's,

    I'll try that as soon as I get my batteries back in shape.

    Carroll

    Leave a comment:


  • Bit's-n-Bytes
    replied
    Originally posted by citfta View Post
    Ok Bits,

    Here it is:

    setfreq m8

    main:

    pulsout 2 , 200
    pulsout 4 , 2
    pulsout 3 , 200

    goto main



    The pins I am actually using are pins 2 and 3. Pin 4 is just to even out the pauses between pulses.


    Carroll

    PS: I see you are also helping Bizzy on another thread so don't jump right on this if you don't have the time right now. I have it working for now. I was just curious if there was a better way.
    Try this;
    setfreq m8

    main:

    pulsout 2 , 200
    pause 2 ;adjust as needed
    pulsout 3 , 200
    pause 2 ;adjust as needed


    goto main




    Thanks

    Jeff

    Leave a comment:


  • citfta
    replied
    Ok Bits,

    Here it is:

    setfreq m8

    main:

    pulsout 2 , 200
    pulsout 4 , 2
    pulsout 3 , 200

    goto main



    The pins I am actually using are pins 2 and 3. Pin 4 is just to even out the pauses between pulses.


    Carroll

    PS: I see you are also helping Bizzy on another thread so don't jump right on this if you don't have the time right now. I have it working for now. I was just curious if there was a better way.

    Leave a comment:


  • Bit's-n-Bytes
    replied
    Originally posted by citfta View Post
    Hi again Bits,

    Well I am sure glad you are doing ok now. I have learned so much from you and Matt and some of the other guys over the last couple of years that we have been working on this. I'll be looking forward to your posts.

    I saw the other day where you were making some suggestions to someone about the programming for the Pic. I am still using the 18x since I am pretty comfortable with it now. I did discover a problem the other day. When I was using the pulsout command I noticed that with short pulse times I had a pause after 2 pulses. Then it would repeat. 2 pulses and a pause. I added a short pulsout command for an unused pin between my 2 pulses and that evened things out so I had the same short pause between each pulse. I assumed the pause was caused by the program jumping back to the top and starting over. I had tried raising the clock speed to 8 mhz which is the max for the 18x. That didn't really help that much but the added pulse seemed to be the best solution. My transformer also started working better with the pulses firing evenly. Is there a better solution or is this just a problem we have to live with when using the Pic?

    Thanks again for all your help,

    Carroll
    Send me your code and I'll take a look. Sounds like it is doing just as you are describing it.

    Thanks

    Jeff

    Leave a comment:


  • citfta
    replied
    Hi again Bits,

    Well I am sure glad you are doing ok now. I have learned so much from you and Matt and some of the other guys over the last couple of years that we have been working on this. I'll be looking forward to your posts.

    I saw the other day where you were making some suggestions to someone about the programming for the Pic. I am still using the 18x since I am pretty comfortable with it now. I did discover a problem the other day. When I was using the pulsout command I noticed that with short pulse times I had a pause after 2 pulses. Then it would repeat. 2 pulses and a pause. I added a short pulsout command for an unused pin between my 2 pulses and that evened things out so I had the same short pause between each pulse. I assumed the pause was caused by the program jumping back to the top and starting over. I had tried raising the clock speed to 8 mhz which is the max for the 18x. That didn't really help that much but the added pulse seemed to be the best solution. My transformer also started working better with the pulses firing evenly. Is there a better solution or is this just a problem we have to live with when using the Pic?

    Thanks again for all your help,

    Carroll

    Leave a comment:


  • Bit's-n-Bytes
    replied
    Originally posted by citfta View Post
    Hey Bits,

    Good to see you in here again. Are you building one of these too? It is a pretty impressive operating TS. Keep in touch.

    @ Garry, you can find the full drawing of the TS with optos in the PDF Matt made. It is on page 25 I think and is the next drawing down from the one you are looking at.

    One of my batteries took a big nose dive suddenly dropping to 9 volts or so. I guess it was sulfated worse than I thought from sitting around for the last few months. When I get it rejuvenated I'll get back to my testing.

    Carroll
    Hi Carroll, yes I have been working behind the scene on the "Big Kahuna" to give this setup a try. The transformer I am configuring is a 1500va. I have designed a PCB to switch IGBT's, 2 to 4 per switch and should have that all together by next week. I'll be using the PICAXE 18M2. Had to take a bit off due to a Massive melt down with the heart. Much better now though.

    Thanks

    Bit's

    Leave a comment:


  • citfta
    replied
    Hey Bits,

    Good to see you in here again. Are you building one of these too? It is a pretty impressive operating TS. Keep in touch.

    @ Garry, you can find the full drawing of the TS with optos in the PDF Matt made. It is on page 25 I think and is the next drawing down from the one you are looking at.

    One of my batteries took a big nose dive suddenly dropping to 9 volts or so. I guess it was sulfated worse than I thought from sitting around for the last few months. When I get it rejuvenated I'll get back to my testing.

    Carroll

    Leave a comment:


  • Bit's-n-Bytes
    replied
    Originally posted by garrypm View Post
    Hi Matt & Carroll,

    Thanks for the replies.

    Where may I find the schematic that uses the optos. I guess for a little
    more effort, one would feel safer, divorcing the logic from the power.

    Thanks, Garry


    Bit's

    Leave a comment:


  • garrypm
    replied
    Hi Matt & Carroll,

    Thanks for the replies.

    Where may I find the schematic that uses the optos. I guess for a little
    more effort, one would feel safer, divorcing the logic from the power.

    Thanks, Garry

    Leave a comment:


  • Sobakin
    replied
    So first test is finished.
    Batteries discharged in ~4 hours: 2 hours before swap and 2 hours after.

    Originally posted by Matthew Jones View Post
    I am surprised by the frequencies.
    I think it's because of transformer's small size and section.
    It work good at 200-300 Hz too, but output voltage is 0.05 - 0.1V less than at 900 Hz. At about 2 kHz effectiveness start to go down dramatically, iron can't work at such frequencies.
    But while transformer power is 7W at 50Hz, at 1000 Hz the same core with rewind can do up to 140W, if wires could handle >10A, of course.
    When I lower frequency to 100 Hz, output voltage raise by ~1v, but battery voltage starts to drop (raised input current) and transformer became heating, so effectiveness go down abruptly (transformer core go to saturation).

    Also I've rewound bigger iron transformer, former 60W 50Hz, I've try it, but it too loud while working, while my load and batteries so small, I don't need such big transformer now.

    One thing to watch....
    Normally everyone wants to watch the power why the batteries are running. This is the way I am encouraging testing of the switch againts the baseline test.
    But really you also want to measure the batteries before you run and after they run and rest.
    Your going to see that even after 8-10 hour runs most of your power is still in the battery.
    I ran a 100 watt loads for weeks, and the batteries appeared to be dropping in Voltage. But after I stopped and let them rest they returned to just below the voltage they started. Now granted the power moved around but it was still there.
    After high load and some time for resting battery voltage will go up in any case, with switching or without it, but in my case it raised from 10.5 to 11.5V, not to initial 13V, and then I put them in work after 2 hour of resting, they will work no more than some minutes and again discharged
    Maybe I miss some key?

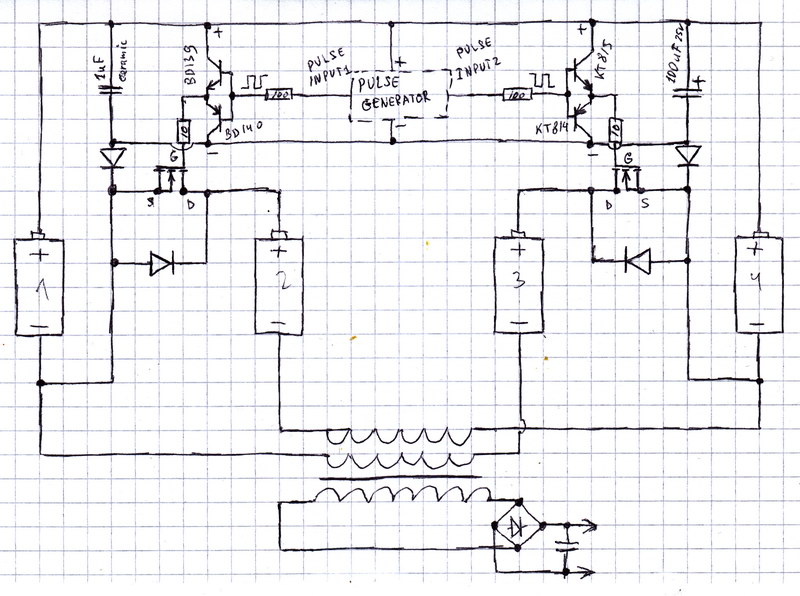

    Scheme of my replication attached.

    And don't be scared to move on and run bigger loads, even on small setup 50 - 100 watts will show you something. Your pulling off the ground side in a potential based system C20 and all that really is not applicable.
    Matt
    I'll try to load them harder, I have 21W bulb, with anonter 10W it will be ~30W, but I need some hours to charge batteries.
    Attached Files
    Last edited by Sobakin; 10-06-2011, 04:28 PM.

    Leave a comment:


  • Matthew Jones
    replied
    Garry.
    Carroll is correct. Any standard diode will work 50v or above.

    @Sobakin

    Very nice build. I am surprised by the frequencies. One thing to watch....
    Normally everyone wants to watch the power why the batteries are running. This is the way I am encouraging testing of the switch againts the baseline test.
    But really you also want to measure the batteries before you run and after they run and rest.
    Your going to see that even after 8-10 hour runs most of your power is still in the battery.
    I ran a 100 watt loads for weeks, and the batteries appeared to be dropping in Voltage. But after I stopped and let them rest they returned to just below the voltage they started. Now granted the power moved around but it was still there.

    And don't be scared to move on and run bigger loads, even on small setup 50 - 100 watts will show you something. Your pulling off the ground side in a potential based system C20 and all that really is not applicable.
    I have never damaged a battery and I really try to push all the power I can through and out of the system. I have also watched the internals of the batteries while big loads are running and I have yet to see anything boil in this setup.

    Cheers All
    Matt

    Leave a comment:


  • citfta
    replied
    Hi Turion,

    Glad you got your parts at last. If I remember right you were going to use a modified transformer like I used and also one you had rewound like Matt has shown us. I would be very interested to see how they compare to each other when used in the same circuit. I suspect the rewound one will work better but it will be interesting to see that for a fact. Don't waste time reading any more. Get to work now! Good luck.

    @Sobakin, That is a very impressive build. Congratulations on getting it to work. I seems to me that you are putting a pretty heavy load on such small batteries so I am really curious how long they will hold up with this new TS design. Please keep us posted of your results.

    Carroll

    Leave a comment:
