Bedini Ferris Wheel Regauging Motor

[Bill H]

OK, well lets see if this does the trick.

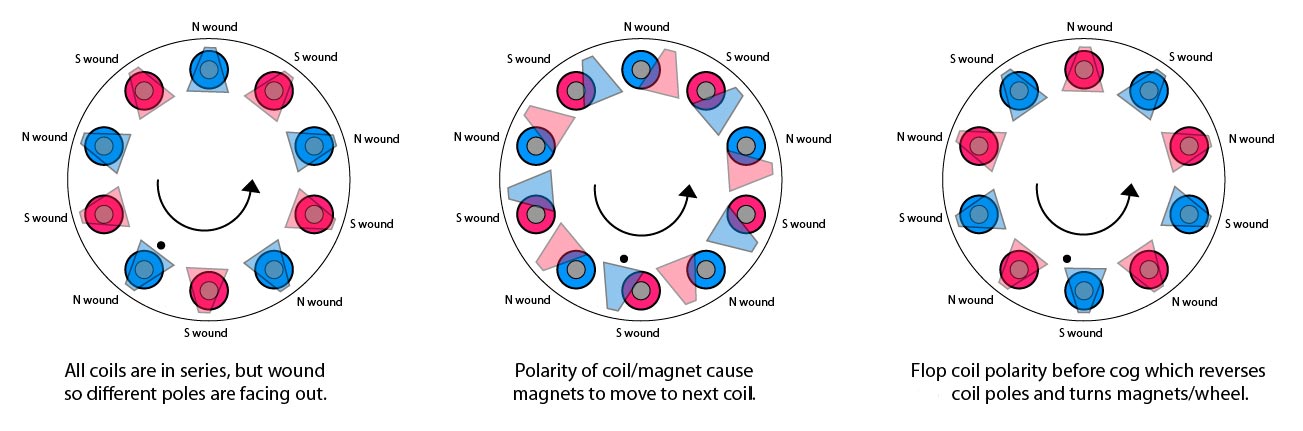

Coils are in series but wound so they alternate poles. Same polarity magnet is over coil and magnet moves. Magnet is pushed then pulled to next coil of opposite polarity. Just before cogging can happen the polarity of the coils are flopped, causing the coil to reverse it's poles. Thus, making the magnets move forward.

rw

I Like that one. 5 switching points. A 5 point star, each long line drawn to a point 144 degrees from the last one.

Bill H.

[everyidea]

OK, well lets see if this does the trick.

Coils are in series but wound so they alternate poles. Same polarity magnet is over coil and magnet moves. Magnet is pushed then pulled to next coil of opposite polarity. Just before cogging can happen the polarity of the coils are flopped, causing the coil to reverse it's poles. Thus, making the magnets move forward.

rw

[Jetijs]

Hi Jetijs Would be so to kind to share the size of the circle all 24 magnets make. As well as one V magnet its lenght, thinkness, width and a rough pullforce. Thankyou

I attached the dimensions of Ford model T magnets

[Bill H]

Cody's Video's

For anybody who may not have seen Cody's series of 5 excellent videos over on the PMH Thread, here are links to them. They are very helpful to understand the various effects the PMH is capable of.
Excellent work Cody!!!
YouTube - Ed Leedskalnin Magnet
YouTube - Ed Leedskalnin Magnet 2
YouTube - Ed Leedskalnin 3
YouTube - Ed Leedskalnin Magnet 4
YouTube - Ed Leedskalnin Magnet 5

Bill H.

[uusedman]

On the Entrance of Coral Castle Edward Leedsklanin you see this following sign:

http://www.miamicoloringbook.com/images/gallery/coral_castle/coral_castle_2.jpg

ED turned 90 degree to the right becomes a Permaneant Magnetic holder with the magnetic currents and the center field.

The pics is enough to grasp the idea that I was pondering. His name is Edward, why just use ED? Also, in capital letters.

[darkwizard]

i think that the interference of the magnetic flux of the monopole coils are doing something with the generator, i think that the potentials can be added, in other words the monopole coils interference are helping the generator to produce more

[albertMunich]

This is a fascinating discussion. Perhaps helpful: I found this sketch of the rotor system of the Bill Muller motor. The offsets seem to be the ones used in the bottom coils.
The Watson machine also seems to have used similar offsets.

I try to understand what goes on magnetically in the bottom coils. I guess the effect is something like a ripple or fluttering effect, much like the flutter of a film loop in a movie projector. Or the IMAX rolling loop system. John used the word compressor.
Mr Bedini I would like to know if on this machine your saying is still valid: "The magic is in the batteries." Your ferris wheel and Bit's 10 coiler in self looped mode seem to have separated the motor and generator parts to a greater degree than the older devices like the unmodified SSG system.Drawing or Gating in the energy from the vacuum would mean here that the MACHINE does it and the batteries only store or convert the radiant to useable normal energy. Am I off the mark here? I would also like to know when you have begun to build this machine and if you have had it run on your BIG battery bank at the shop.

So much to learn about Leedskalnin and all the other related effects.Very hard to visualize the Coral Castle material if you see only photos and have never been there for real.
That Mr Bedini is able to condense all this knowledge into this single machine is incredible.
Looking forward to more. I will only start to build something of my own when I have learned a lot more. For the moment there are still too many clouds in my head...Thanks to you all. My great admiration goes to you.
Mr Bedini if its a consolation to you- here in Germany we also freeze our feet off in the snow at the moment!

Albert

[everyidea]

Here is a regauging idea that uses the elements that JB has been talking about. It has five flops/switchs to make the wheel go round once and has the radus effect during flop/switch. All the cores are touching a back plate so they make one big ten pole PMH.

I wonder if between stage 3 and 4, when the coils are switched into the Radus "on" position, if there is a spike in the coil as the magnet passes over and leaves it. I think this spike would come from pulling an amplified magnetic force from the magnet through the coil core and to the back plate. If so, then we can capture the spike in a cap and use it to help power the coils when they are flopped back to normal.

Here's an interesting link:
GAP Power magnetic amplification and neutralization illustrates regauging

rw

[carmine]

assuming that ?

HMM , Say i have a metal U bolt ,say we bend it in a V shape. What happens , if i was to place a north magent on one end, then the south on the other. Would that act the same as a soild V magnet ? IF so then this might answer this, But with coils in place of the magnets ?

and assuming that you did not have any magnets could you still make it run

[Aaron]

Regauging

regauging - Google Search

[Raui]

If we have a magnet which is dying and we introduce a south pole to the dying magnet's north pole for a period of time as to remagnetize the dying magnet is that not regauging? Atleast that's what I've always thought of it as.

Raui

[rosehillworks]

iron wire

Hi John. I am thankful you are here teaching us! It seems to me the natural progression of logic is to wire the coils with iron seeing how the nature of this energy is reverse of what we are us to. or am I wrong?
Thanks WILLIAM REED

[Jetijs]

Hi Jetijs Would be so to kind to share the size of the circle all 24 magnets make. As well as one V magnet its lenght, thinkness, width and a rough pullforce. Thankyou

Will do precise measurements tomorrow and post them, the plywood wheel on which the magnets are bolted on is 400mm in diameter. Everything else I will post tomorrow as it is already very late here and I am not in my shop.

[carmine]

Hi Jetijs Would be so to kind to share the size of the circle all 24 magnets make. As well as one V magnet its lenght, thinkness, width and a rough pullforce. Thankyou

[darkwizard]

Regauging is about manipulation of the potentials , in other words you can manipulate the magnetic potential or scalar potential and achieve a net gain of energy without to spend so much energy to realize that.

simply: Use clever what the magnets are producing inside the coil, re-introduce the energy inside the coil, and make it move the magnet, the heaviside flow re enters the coil after the switch is off, heaviside flow is free lunch, and is independent of the input energy, input energy is the trigger.

This generator, i believe that is an AC CAPACITOR INDUCTOR circuit in resonant mode, the magnet passing inside the coil behave like a negative resistance, so the voltage inside the coil is reactive and real inside the cap.

A CAPACITOR INDUCTOR circuit actuates like a shock absorber senoidal wave because resistance of the coil is present and dissipates some energy on heat, but in a regauging system with a magnet the energy will increase, and we can tap the extra portion without stopping the machine.

we are dealing with unstable and acausal systems with infinite energy.
