Hi UFO,

Well its about 50W average output for 300W DC input. Those current waveforms have some phase shift and do not cancel, so a loose coupled transformer action is occuring, somewhere in the order of 5A Pk-Pk out of 20A Pk-Pk swing.

A minimal change in input current when shorting both output coils does really prove anything if it is operating as a loose coupled transformer.

I could make scope power measurements and post them but they are not even in the ball park.

I have tried shifting the sine in code, also reducing the modulated amplitude. the distortions remain although operating into a resistive load produces a perfect current sine.

I have also tried twin single ended MOSFET switches but that needs a flyback diode and the distortion is worse. Possibly a PWM system with a feedback correctional loop would produce a clean sine.

Anyway... still thinking about it.

L192

Got You, Thanks, Listener192,

Ok, but you must realize Your Coil-Core size ratio of your secondary versus your two primaries...I would say the Sec Length is about 1/3rd off One of your Primaries...

However, Generally speaking, Your results are EXACTLY what I have explained to Netica on the other Thread...this set up (NOT meaning yours, but related to Figuera Patent Main Design, BASICALLY of Primary-Secondaries alignment and positioning) will NOT DO IT, meaning going OU.

Your two sines are almost perfect...

Thanks for sharing it!!


Regards


Ufopolitics

[Listener192]

Load I & V single and twin primaries

Hi UFO,

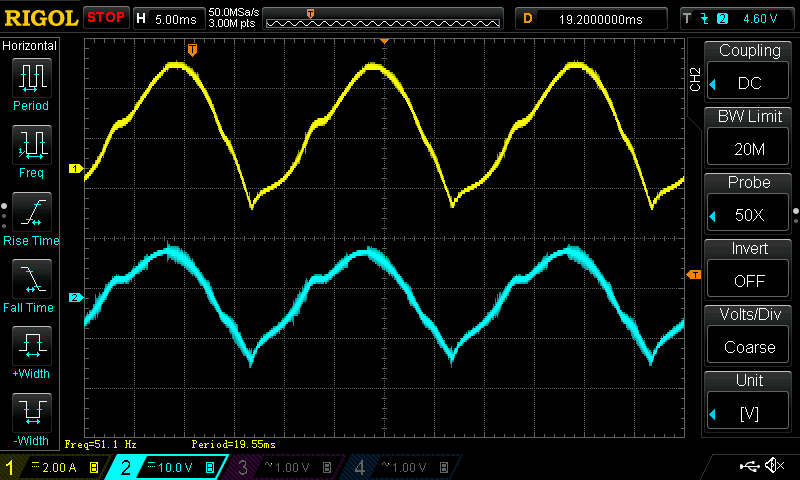

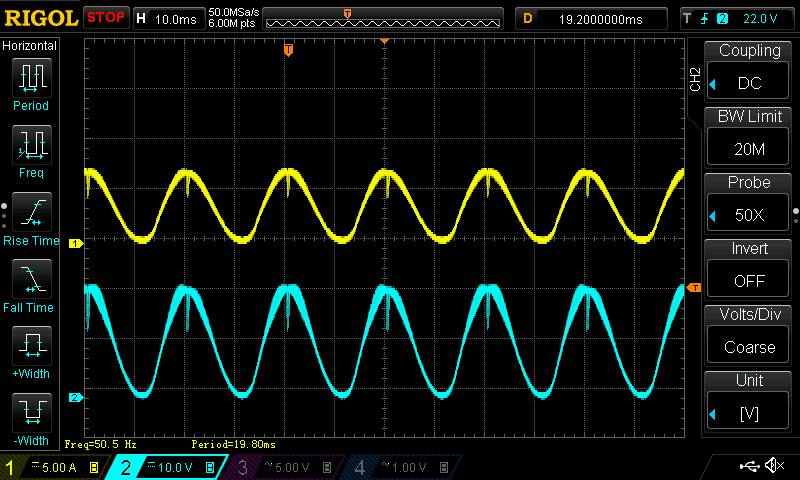

Attached are scope shots of Load current (yellow) and voltage (blue)

Single primary and twin primaries.

Probe is a differential type on x 50. Scaling setting to read actual volts.

L192

[Listener192]

PWM Class D single rail amplifier

I think that the attached Class D amplifier arrangement may provide the solution to a symmetrical sine. A commercial single rail D class amplifier could be used, just leave out the output capacitor that normally provides the DC isolation.

Perhaps a cheap medium power amplifier with upgraded MOSFETs or even paralleled MOSFETs.

One you would be feed with a zero degree sine and the other a 10 degree sine.
Phase corrections could be easily applied to the sines to achieve perfect cancellation.

L192

[Ufopolitics]

The DC Exciter Sinewave I am working on now...

Hello to All,

I am still working on the development of the driver (Rotary Switch, mechanical) which would render the following Sinewave:



So far this is a winner wave am working on, and what it does, is to REVERSE the TWO COIL TERMINALS VOLTAGE, used as the EXCITER, or Primary.

It does an "IDLE TIME" of exactly, 45º every HALF TURN (Half Cycle), which I use those TWO contacts to discharge to an AC Cap, as the Coils reverse spikes when is Switched Off takes place every half cycle.

This is a Development "Upgrade" from my previous rotary switch with the 16 elements commutator and a single brush, the 135º was the best timing that the exciter coil was On...or Six (6) elements from a 16 divisions Commutator (360º/16=22.5º each div. angle), then it would be 22.5ºX6=135º).

The Exciter worked out fine (same output results) whenever I reversed the Magnetic Field by switching the Input Polarities...but it reduced its output whenever I added another positive switching to a second primary with a common ground (typical Figuera way)...And these testing results made me move into this new form of switching.


The question to all Electronic developers here, like El Cheapo or Listener192...

Could this same scenario be reproduced on a Solid State Switching Electronic Board?

I know MOSFET's only either open or close like a switch...BUT, BASED on the SAME V Input Polarity which is supplied to their Sources (N or P Channel FET's)...so I believe it would be way complex than just an OFF-ON Scenario to reproduce this same, exact Sinewave.

But this is the winner SIGNAL so far guys...and so, the positioning of Primaries-Secondaries will not "necessarily" be based on a Sandwiched fashion of TWO Primaries and one CENTER Secondary...BUT, the other way around...and then more...a THIRD Secondary that could be added.

And the Idling Time of 45º MUST BE THERE!!...It can NOT BE one REVERSED switching after the other continuously at zero time...or else Fields would cancel to zero...Idle Time allows for the Collapsing Field to "FADE OUT" or Discharge into the Cap, while the Reversed one would be rising UP.


Regards



Ufopolitics

[Ufopolitics]

The Switch Contacts and Rotating Brushes...

Hello to All,

In order to have a more solid, real idea...

This is the Mechanical Way, I am achieving the previous Signal...:



I have TWO CENTER OFFSET ROTATING BRUSHES shown, which are NOT Connected to absolutely nothing...All they do, is to close Arcs Segments, exactly at 180º apart.

As You all could see, on Image above, the Coil Terminal 1 (Left) is receiving a Negative Voltage, while the Coil #2 Terminal is receiving a Positive Voltage, by Right Brush closing contacts between Coil#2 Arc and Inner Positive Arc Segment.

These switching provides as well, a CURRENT REVERSAL, since we are FULLY reversing voltage Input at each terminal in every cycle...which maintains a steady Input SUPPLY at Exciter Coil. Same, exact deal as we get in a Symmetrical Brushed Motor...where BEMF is controlling by Current being back-forward directed alternatively.

The Upper and Lower Three elements are connected to an AC Cap, which collects ALTERNATIVELY the Off Times Spikes, PLUS, the ALTERNATED Input for a very short fraction of contact time (45º above-below).

This switching generates a FLASH POINT of N-S Reversed Spirals on each end of the Exciter core (more specifically, from Center of Core Outwards) alternatively...

Then We "MIRROR" this same signal with an LC Tank Circuit, same winding spec's as exciter coil, which smooths this square signal PLUS AMPLIFY IT...Hence the Exciting Magnetic Field INCREASES IN STRENGTH (for the price of one...)...Which gets Induced (FED) by Switched Exciting Magnetic Field.

Can't find a CLOSER APPROACH to the way a Rotating Generator Exciter Field works at FULL OPERATIONAL SPEED...


We are getting closer every day more...


Regards


Ufopolitics

[Listener192]

D class amplifier

It took a little time but I have one D class amp built. Its based on the NCP5106 Dual MOSFET driver, which allows the use on N channel devices.
It also provides the shoot through prevention. I am using 2 x 600V 53A MOSFET's. This driver is one I gave up on several years ago as MOSFET failure takes the driver out every time. In this case the application is fairly benign.

This one takes its PWM from the arduino, after TTL to CMOS 15V signal conversion.

I did some testing with square waves (no PWM) and it seems to drive a coil OK at 20A Pk-Pk.

Once have a PWM sine feeding it I will see what the sine current distortion is like.

Of course it could be driven with a PWM square wave, that would just control the amplitude of the square wave.

L192

[Listener192]

New Switching Waveform

Hello to All,

I am still working on the development of the driver (Rotary Switch, mechanical) which would render the following Sinewave:



So far this is a winner wave am working on, and what it does, is to REVERSE the TWO COIL TERMINALS VOLTAGE, used as the EXCITER, or Primary.

It does an "IDLE TIME" of exactly, 45º every HALF TURN (Half Cycle), which I use those TWO contacts to discharge to an AC Cap, as the Coils reverse spikes when is Switched Off takes place every half cycle.

This is a Development "Upgrade" from my previous rotary switch with the 16 elements commutator and a single brush, the 135º was the best timing that the exciter coil was On...or Six (6) elements from a 16 divisions Commutator (360º/16=22.5º each div. angle), then it would be 22.5ºX6=135º).

The Exciter worked out fine (same output results) whenever I reversed the Magnetic Field by switching the Input Polarities...but it reduced its output whenever I added another positive switching to a second primary with a common ground (typical Figuera way)...And these testing results made me move into this new form of switching.


The question to all Electronic developers here, like El Cheapo or Listener192...

Could this same scenario be reproduced on a Solid State Switching Electronic Board?

I know MOSFET's only either open or close like a switch...BUT, BASED on the SAME V Input Polarity which is supplied to their Sources (N or P Channel FET's)...so I believe it would be way complex than just an OFF-ON Scenario to reproduce this same, exact Sinewave.

But this is the winner SIGNAL so far guys...and so, the positioning of Primaries-Secondaries will not "necessarily" be based on a Sandwiched fashion of TWO Primaries and one CENTER Secondary...BUT, the other way around...and then more...a THIRD Secondary that could be added.

And the Idling Time of 45º MUST BE THERE!!...It can NOT BE one REVERSED switching after the other continuously at zero time...or else Fields would cancel to zero...Idle Time allows for the Collapsing Field to "FADE OUT" or Discharge into the Cap, while the Reversed one would be rising UP.


Regards



Ufopolitics

Hi UFO,

Yes you could generate this waveform with an H bridge, just like a sine inverter with a + & - rail, except in this case you delay before switching the polarity via the second set of transistors in the bridge.

L192

[Listener192]

Trailing edge dimmer

Hi UFO,

As you are now generating AC, a simpler option may be to use a trailing edge dimmer, see attached.

If you try to generate a square current waveform, now you are using AC on the coil, complete magnetic reset and reversal will mean that the full inductance of the coil will be seen, unlike the DC method. Your current wave shape will be closer to a sawtooth.

With a trailing edge dimmer, the leading edge will be a sine and your 135/45 degree waveform could be easily set. A variable tap transformer or variac could be used with the dimmer to control current amplitude.

The only reason for using PWM, would be if you wanted to control the current amplitude while generating the square waveform from +& - DC rails.

L192

[Ufopolitics]

Hi UFO,

As you are now generating AC, a simpler option may be to use a trailing edge dimmer, see attached.

If you try to generate a square current waveform, now you are using AC on the coil, complete magnetic reset and reversal will mean that the full inductance of the coil will be seen, unlike the DC method. Your current wave shape will be closer to a sawtooth.

With a trailing edge dimmer, the leading edge will be a sine and your 135/45 degree waveform could be easily set. A variable tap transformer or variac could be used with the dimmer to control current amplitude.

The only reason for using PWM, would be if you wanted to control the current amplitude while generating the square waveform from +& - DC rails.

L192

Thanks Listener192,

I have seen, and own some Three Phase BLDC Motor Controllers...which I know work based on an "H Bridge", however this is a Basic Single Phase Signal (so far).

You are right I have now an AC Signal, BUT, remember it is generated by DC, and so please note the Flat Line On Times whether at negative or positive peaks, this is highly required to allow for Magnetic Field FULL Development by being Fully ON for that time.

In the Mechanical Rotary Switch, the brushes RIDE CONTINUOUSLY through TWO Solid ARCS of Copper, which turns ON Field for the whole 135º Angle. And no matter the speed, this ON Time would be present, so the Signal would NEVER make a sharp peak.

Sharp ON Peaks will NOT allow for field development.

On the Image I have displayed about the mechanical Slip Rings Commutator, I have set just Two Brushes (one on each side) for sake of simplicity on the explanation...but in reality I have Two on each side, jumped by pairs, this way I have one (Supply) AHEAD of the Coil Brush, in order to allow Coil being OFF, to discharge to Cap while it is disconnected from source.

As soon as I finish tuning up the switch, I will make a video of the tests, so you could see the REAL Signal.

Real Signal is NOT as neat as shown on my CAD, it gets a bit distorted when Cap charges by the Coil spikes resulting from disconnection at the OFF Times.

The main purpose of this running cap, charged in every cycle is to be able to retro-feed the main supply, becoming a Self sustaining system. However, Cap also allows Coil to discharge and enter "pretty clean" to next reversal, hopefully this would reduce to almost zero any commutation arcing.


Regards and thanks again for your help!!


Ufopolitics

[Listener192]

D class Amplifier with PWM sine input

Attached are some scope shots, showing the results of a resistive load and an inductive load.

As you can the sine current is pretty good in both cases however there is a 10A offset in coil current. I need to think on this problem.

Experimenting with a UPS filter took out one of my MOSFET's, my mistake as it effectively shorted the 31KHz pulses. I may have got away with this but I only had a temporary heatsink attached to the MOSFET mount rail, so I think they just cooked.

So now need to get replacements.
L192

[Ufopolitics]

The Rise of Output Amperage...above Source.

Hello Listener192 and All,

The Figuera's Signal, which was actually assumed, based on the Interactions from the Patent Images, based on its graphics with commutator and Resistors...does NOT offers a Strong Induction on Secondaries which could render a Higher Amperage which would be ABOVE Input Amperage.

Remember Figuera cited this Diagram with Comm and Resistors as an EXAMPLE for the Patenting purposes. And it DOES Generates an Induction on Secondaries...but...

...ONLY with an ABRUPT and RADICAL, Constant Magnetic Field Spiral Reversals, EFFECTED from Exciter to Secondaries Coils, will definitively "PUMP" a MUCH Higher Amperage than what we are Inputting through our Source.


You can or can not believe me, or you could keep trying with the Original Assumed Signal...it is up to you...however, time will tell the final answer...


Regards to All


Ufopolitics

[Ufopolitics]

Coil to Cap Discharge Momentum...

Hello to All,

Below is a better view of the way brushes are positioned related to Slip Arc Segments, as I am showing BOTH Discharge Times in One Cycle from Coil to Cap




And...



Note that supply brushes are Off from supply arc, by the time Coil Brush is discharging to AC Cap on both positions...


Ufopolitics

[Listener192]

New Signal

Hi UFO,

My efforts so far are just to verify that the balanced sine current waveforms cancel flux linking, leaving only the flux cutting component.

I have doubts that this will be the case but in deference to the project I thought I would give it the benefit of the doubt.

With your new waveform is this applied to two exciter coils N-N in antiphase, or just to a single exciter coil?

You mention recovery to a capacitor, could you show a schematic of your setup?

Thanks

L192

[Ufopolitics]

Hi UFO,

With your new waveform is this applied to two exciter coils N-N in antiphase, or just to a single exciter coil?

You mention recovery to a capacitor, could you show a schematic of your setup?

Thanks

L192

L192,

Just One Single Exciting Coil, which based on this new signal it becomes NS and SN in ONE cycle it does one magnetic pattern...PLUS I have a second Exciting Coil which is based on an LC Tank (closed circuit), however, same spec's as turns, wire gauge etc as the Single Exciter Coil...actually is wound as a Bifilar kind with primary one, sharing SAME Core.

The AC Cap (A Generator AC Running Cap), am just reading energy gain Input with different frequencies, meaning, just connected to the center terminal short (45º) arc segment shown on above two images...where it reads "CAP".


Regards


Ufopolitics

[Ufopolitics]

Hi UFO,

My efforts so far are just to verify that the balanced sine current waveforms cancel flux linking, leaving only the flux cutting component.

I have doubts that this will be the case but in deference to the project I thought I would give it the benefit of the doubt.

L192

But you could've check that by making Two Air Gaps between Three Separate Cores, separated by whatever thin insulation...no more " flux linking" there...right?

It would still Induce friend...it's called "Spatial Induction"...


Regards


Ufopolitics
