The Resonance Energy Device Explained

[med.3012]

@ all readers of this thread



please ask your question if you don't understand something !

[Wistiti]

Hi Med!
i have an ETBC. I also have some ferrite rod to put in for the core. I have a hv source. I can Wind bucking coil perpendicular to the ETBC...
Do you mean i can acheive great output this way??

Im not sure i understand everything,,,

Thank you!

[med.3012]

Hi Med!
i have an ETBC. I also have some ferrite rod to put in for the core. I have a hv source. I can Wind bucking coil perpendicular to the ETBC...
Do you mean i can acheive great output this way??

Im not sure i understand everything,,,

Thank you!

Vladimir Utkin and Lenz's Law



in this technique you need to deflect you electromagnetic waves to your bucking coil so you have a reasonable output But the problem is what will happen to Radiant energy ? can we deflect it the same way ? if you heard the posted Don Smith audio file he talked about the magnetic component that travel into the deep space .. this look like it's everywhere and we don't need to deflect it , the following is Utkin idea :




in the ETBC you can use the serial ETBC to increase the power, it's also possible to play in the geometry for example increase the width of your conducting foil , but the most important key is the resonance .

[med.3012]

Vladimir Utkin and Lenz's Law



in this technique you need to deflect you electromagnetic waves to your bucking coil so you have a reasonable output But the problem is what will happen to Radiant energy ? can we deflect it the same way ? if you heard the posted Don Smith audio file he talked about the magnetic component that travel into the deep space .. this look like it's everywhere and we don't need to deflect it , the following is Utkin idea :




in the ETBC you can use the serial ETBC to increase the power, it's also possible to play in the geometry for example increase the width of your conducting foil , but the most important key is the resonance .

in the above proposal using a large foil is a good option :

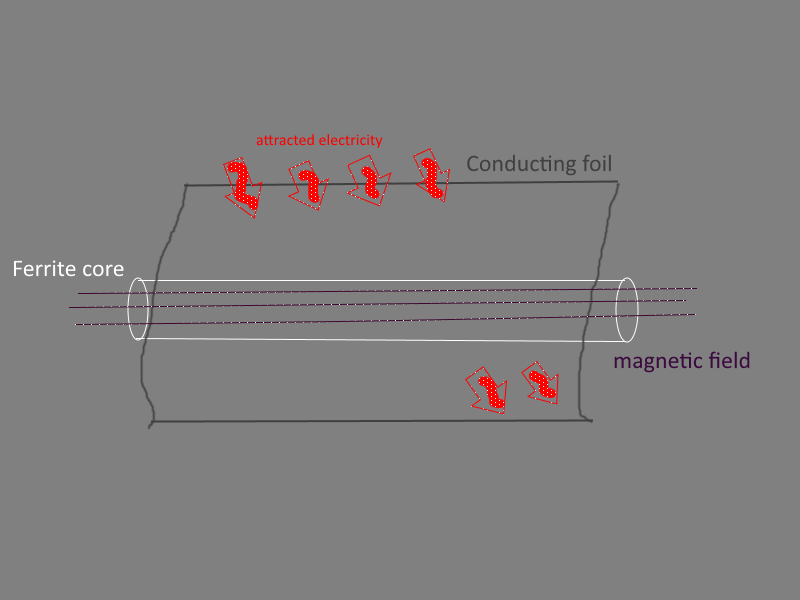

the simple drawing show the ferrite core, your magnetic field lines, now there's as much attracted electrons along the foils, it's like emulating the serial ETBC behavior ! but we can't use the S-ETBC in a ferrite rod only ring is suitable for this, the reason for this is the variable inductance created along the rod so each ETBC will oscillate in different frequency but the effective way is to let it oscillate in the same frequency , using a large foil in a relatively long rod is a great option .

[med.3012]

Ok it's the time to sleep any comment will give an extra power to exchange the idea and dig deep in this field


see you !

[med.3012]

Hello everyone !



while surfing the internet i found the archived Don Smith website in the following addressee :

https://web.archive.org/web/20030812033022/http://altenergy-pro.com/rec.htm

most present info are known from his PDF but i found an interesting animated GIF i think it's a result of simulation of his system , please take a deep look at the following GIF animated image :







i think it's a very interesting source of information because you could see the CCW field and the CW field a lots of info is present in this image ! please take your time and analyse it

[med.3012]

Hello everyone,


just starting building again after gathering some missed electronic pieces, the first step is building a working Mazzilli driver, since it's stable and powerful driver in other hands the MOSFET remain cool, the frequency can be adjusted just by changing the tank capacitor that feed the flyback transformer , the oscilloscope is needed to watch the wave form , so you can calculate the inductance needed , another simple pieces needed is coil 32 V 11 free software that will help in calculating the needed inductance , frequency or capacitance ..


the following photo show a part from reverse engineering work :






the idea is very simple indeed, imagine you have a 200 nf / 15 kv capacitor that will resonate in high voltage, the resonance in high voltage will just create a reactive high current that needed to excite the ETBC, when you measure the frequency of Mazzilli driver here i mean the tank circuit connected directly with flyback transformer you find for example 25 KHZ , 25 KHZ is good but since you don't have more than 200 NF capacitor probably you need high inductance connected in serial with the ETBC to produce the needed inductance to achieve the resonance , here it's better to work with the lowest possible inductance so the oscillating HV tank circuit can get even higher current , another important point must be watched carefully is the high voltage leave the flyback transformer, when working with 25 KHZ the voltage will be high around 45 KV and it's very high , i didn't measured the high voltage but from arcing length it can be predicted .. anytime the frequency of Mazzilli driver is increased the high voltage will decrease due to the impedance of the first coil work in low voltage ( X = 2π F L ) the secondary coil of flyback will see the higher frequency due to the large turn number needed to create the HV again the voltage will decrease , changing the frequency and watching the length of arcing will tell you how much frequency is better ,

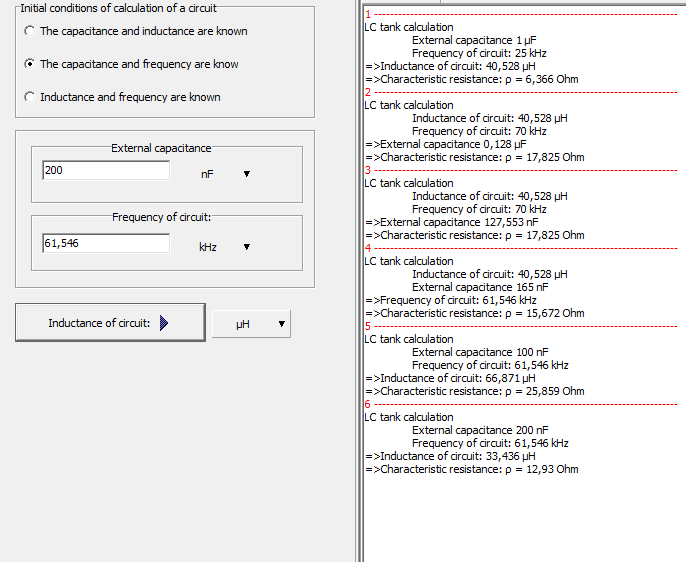

now you know the value of L0 which is the first low voltage coil connected with the Flyback ( 10 turn as described in MAZZILLI circuit ) in my case L = 40.5 UH , the capacitor connected with this coil is 165 NF that will give 61.5 KHZ , the same frequency will leave the HV transformer but i have 200 nf high voltage capacitor , coil 32 software will do everything as shown in the photo the needed inductance will be 33.4 UH .



at this point you can build an ETBC with 33.4 UH but it will take a lots of time and resources ... large ETBC will have large resistance and this will decrease the excitation electric current especially when Aluminium foils is used, the solution is to use a few turn ETBC made using a ferrite rod , in my case it's a home made ferrite core where the magnetic permeability isn't as off the shelf ferrite rods but it's just good since the magnetic field will find a path and this will help the ETBC to oscillate perfectly ,
the important factor is the electric current , because of this we need another coil connected in serial with the ETBC , for example if the ETBC has 1UH inductance and you need 33.4 as total inductance the added coil have to have 32.4 UH as a simple calculation 33.4 - 1 = 32.4 UH .



THIS coil will help us too much because when you put your L2 coil around the ETBC to take the power the overall inductance can't be affected too much so the resonance is maintained ..





more details will come soon !

[med.3012]

another technical request


How much level can the earth ground quality effect an over energy device ? i am doing some experiment where the earth play a critical role , standing waves can be seeing very easily either with a small light bulb or using a scope probes ..

all the test are based on the ETBC but with a ferrite rod inside, the capacitors banks can be charged only when there's an earth ground, now the question arise to how much level will affect the system ?


thanks in advance !



this is a quote from smith.pdf

[med.3012]

Hi !


i made two separate test , one with poor earth ground and the other with real earth ground , the results was very clear with good earth ground ( but it's not the best earthing since it's made soon just to see the result ) .

the circuit is very simple using a driven ETBC using mazzilli circuit, the ETBC is the tank L/C for mazzilli for oscillation around 1.5 MHZ ( it' the first time i saw the double frequency behavior in this coil since the equivalent will just give the half frequency ... ) the secondary is an air 400 turn selenoid coil feed a diode plug of 3000 V each with 1A fast diode

the charging speed of the capacitor is very Good , higher voltage capacitor banks is ideal and it's possible to use serial connected capacitor to achieve the desired voltage without problem , this is another advantage of this arrangement .




soon i will post some photo about this design but i think it will not produce the desired over energy phenomena in great values but it show the potential of ETBC under resonance mode , the ETBC was resonating in 12 V and it gave a fantastic show but we need another push to go around 4000 V resonating system , any idea are welcome ! :-)

[tesluh]

After seeing an image with Don's coil-capacitor plate device on this thread I am very curious to know if anyone has had any success with anything like it. A brief study of displacement current in a capacitor shows potential in this device for easy free energy. Studying tesla's hairpin circuit as well lends credibility to this type of device. Like most all of Dons devices there seems to be info lacking on how to get the effect or put it to any use. I don't have a functioning tesla coil sitting here but I have a wide variety of hv power supplies like nst's and flybacks to spark to the plate. I need to get a sheet of copper to experiment with, I have two sheets aluminum.

[med.3012]

After seeing an image with Don's coil-capacitor plate device on this thread I am very curious to know if anyone has had any success with anything like it. A brief study of displacement current in a capacitor shows potential in this device for easy free energy. Studying tesla's hairpin circuit as well lends credibility to this type of device. Like most all of Dons devices there seems to be info lacking on how to get the effect or put it to any use. I don't have a functioning tesla coil sitting here but I have a wide variety of hv power supplies like nst's and flybacks to spark to the plate. I need to get a sheet of copper to experiment with, I have two sheets aluminum.

practical failure don't mean the device don't work , i expected the double frequency behavior of the ETBC a long time ago and it's verified now , simply if you have an ETBC and you measure the inductance and the capacitance the oscillation frequency will be 2 X F where the F is the famous resonance frequency equation :


instead of this :






you have this :






this mean the coil and the capacitor the two are merged together to form one device that oscillate very quickly because the time needed the charge the capacitor is prevented.. the same happen to the time needed to charge the coil magnetically .. in this case we end up with something strange and difficult to see ! it's the electron spinning mechanism exactly as bar magnet but it's a dynamic magnet !
this is why it's a part from the system to use a ferrite core but more precisely a stronger magneto-restrictive material ... adding a stronger magnetic material is similar to adding a stronger permanent magnet to normal generator that based on rotation.


stronger magnetic material will add an enormous forces to the electrons to spin back and forth as you are adding more electric current but in this case it's drawn from the ambient for free !

the discussed arrangement will work good if you have a magneto-restrictive bar for example since the magnetic field will be thousand of time more what i did !

another option is to play on resonance mode at least to achieve a high electric current to excite more ambient electrons..

[Solarlab]

Good technical site - papers (notes) and calculators (animations)

F.Y.I.

This may be a repeat, or you all may be aware of this site already, but, if not:

Notes

Calculations

Note: Use the USA flag (Eng) since the Yandex translator will eventually display proper formula formats - may take a while however...

The entire site is, in my opinion, worth the effort - very educational at worst!

Many things Don Smith talked about will become apparent as the NOTES (Gorchilin's papers) are reviewed.
One nice feature is the concepts are backed up by mathematics and demonstration animations.

FIN

[med.3012]

F.Y.I.

This may be a repeat, or you all may be aware of this site already, but, if not:

Notes

Calculations

Note: Use the USA flag (Eng) since the Yandex translator will eventually display proper formula formats - may take a while however...

The entire site is, in my opinion, worth the effort - very educational at worst!

Many things Don Smith talked about will become apparent as the NOTES (Gorchilin's papers) are reviewed.
One nice feature is the concepts are backed up by mathematics and demonstration animations.

FIN

very informative site thanks so much

[med.3012]

I need to get a sheet of copper to experiment with, I have two sheets aluminum.

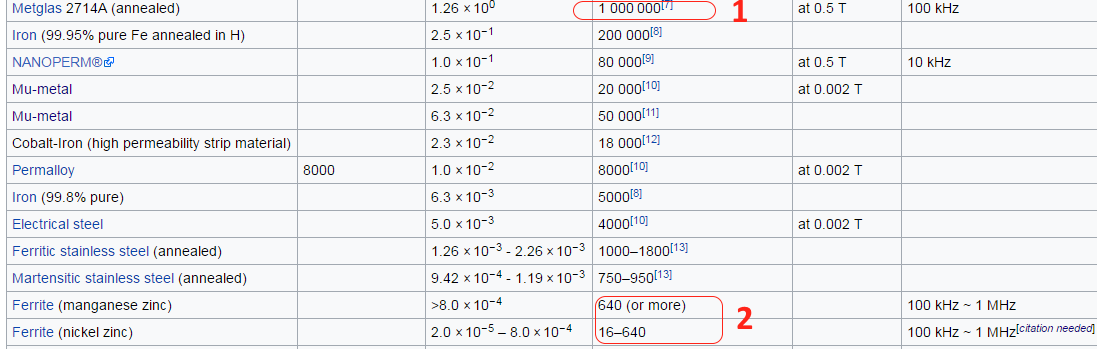

Copper for sure has something to do in this device even i expect it to work with Aluminium foils only, but the core is the most critical part , the following photo show the difference between relative magnetic permeability of different materials , without doubt the results will be greater at least hundreds of time when using the most powerful magnetic materials , for sure there's other option but it need a deep breath ..

[med.3012]

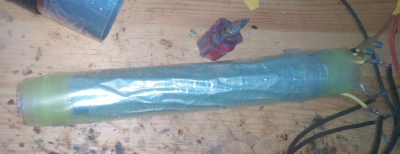

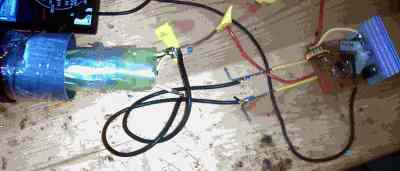

this is some photos show the discussed arrangement using an ETBC around a ferrite rod, for the mazzilli to work with this design there's some parameters as limit for example in this design i used 14 NF as capacitance side of the ETBC, the inductance is 1 UH , the width of the foil is around 20 CM each foil is 50 CM length , the oscillation frequency is 1.5 MHZ, in fact this is a very high frequency and the amount of radiation seem to be high also so you can see the wave from a distance ( around 1 M you have to test .. )

if someone want to replicate this design it's better to decrease the frequency below 1 MHZ charging the capacitor seem to be very fast even 4700 UF / 50 v can be charged in less than 3 sec , good earth ground play a critical role ..
