Mr Lester J Hendershot's magnetic generator.

[Dave45]

http://www.energeticforum.com/renewable-energy/9656-electric-field-magnet-43.html#post223133

[hywystr]

Hendershot Generator.

Thank you Morpher for your reply. I have been working in the field for 26 years repairing hot tubs and swimming pools. I have gotten into circuit board diagnostics and replacing the parts. I have a book on electronics but am not familiar with some of your terms. Thank you for the clues you have given me below. What does the uH stand for? I do not follow Q either. I am painfully aware the tank circuit I made does not oscillate. You did not mention anything about the metal lining on the basket weave coils? As far as duplicating exactly what Lester did I am more interested in building something that I can use. I do appreciate your suggestions and will investigate if they help? I trust you were able to look over the post I did of the drawing to show what I have built, sitting in my dining room. Where can I find the directions you mention to hand make the caps Lester made? I would think that all the people interested in this, on this site, should be able to work together and build something that works. A lot of time is wasted if we are duplicating our efforts. As far as a "hobby" goes, I am serious about building a device I can hook my house up to. Bob

So Bob,

The 500MFD caps in the coils you have, wired to your L1 coil ... not good.
Plugging in 125uH for the coil for this tank circuit, we see that it
resonates at 636hz BUT ... and a big BUT ... Q is only 6
and according to T.H. Moray's math, this tank circuit WONT oscillate.
4L/C is a terrible 1.0.

What Hendershot had here was a hand-made 7.8nF capacitor wrapped around a metal cylinder.
Further, just today I realized that this capacitor may not be wired to L1 at all.
Rather, it may just self oscillate at Ghz frequencies.
L1 may also oscillate at Ghz frequencies -- and "hugely" wide band, if wired to itself.
So if Hendershot was tuning for something really high, like 1 Ghz or higher,
L1 would be wired to itself ... and his hand-made CAP would just be in the coil, but not wired to anything.

So the mod you can make here to start is to
* wrap 2 Hendershot caps - 7.8nF each and place in a cylinder
* cylinder can be aluminum (magnetic or not -- not sure)
* wire L1 to itself.

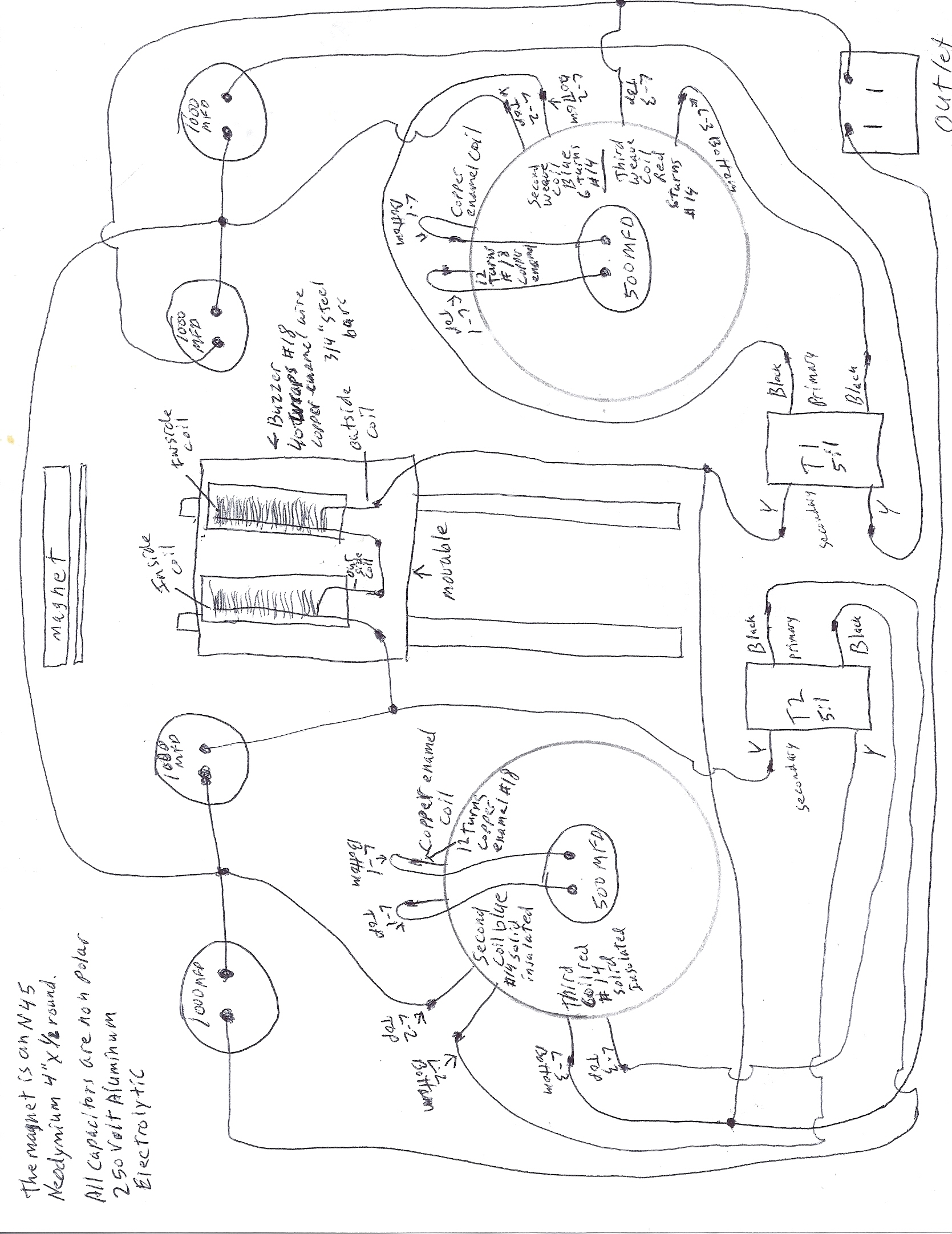

Next as to your schematic ... I wouldn't trust the schematic from the video.
Compare it to the schematics in the Barry Hilton book.

[morpher44]

deep purple...

So Bob,

The 500MFD caps in the coils you have, wired to your L1 coil ... not good.
Plugging in 125uH for the coil for this tank circuit, we see that it
resonates at 636hz BUT ... and a big BUT ... Q is only 6
and according to T.H. Moray's math, this tank circuit WONT oscillate.
4L/C is a terrible 1.0.

What Hendershot had here was a hand-made 7.8nF capacitor wrapped around a metal cylinder.
Further, just today I realized that this capacitor may not be wired to L1 at all.
Rather, it may just self oscillate at Ghz frequencies.
L1 may also oscillate at Ghz frequencies -- and "hugely" wide band, if wired to itself.
So if Hendershot was tuning for something really high, like 1 Ghz or higher,
L1 would be wired to itself ... and his hand-made CAP would just be in the coil, but not wired to anything.

So the mod you can make here to start is to
* wrap 2 Hendershot caps - 7.8nF each and place in a cylinder
* cylinder can be aluminum (magnetic or not -- not sure)
* wire L1 to itself.

Next as to your schematic ... I wouldn't trust the schematic from the video.
Compare it to the schematics in the Barry Hilton book.

[hywystr]

What I have built.

[ATTACH][/ATTACH][ATTACH][/ATTACH]I do not know how to attach the diagram but it says here it is attached.

So everything you paid for was FREE on the web.
The sale of this bogus "plan" is a rip-off.
I don't want to discourage you from this hobby, however. It is fascinating.
The instructions explained nothing and people on this forum, and other places, are trying to work out what might be going on with the Hendershot devices. He had several iterations ranging from a toy that powered his son's toy plane (seen in a newspaper article Feb. 27, 1928.

Interestingly, the chronology here is:
2/24/1928 - first articles start appearing about Hendershot's fuelless generator
2/27/1928 - Many newspapers have the article now...
2/28/1928 - ONE-DAY-LATER, it is already being debunked and Hendershot
is accused of fraud, etc.
3/9/1928 - newspaper articles appear that Hendershot is in hospital after
receiving serious SHOCK. He is paralyzed, can't speak,
especially can't speak to reporters.
more debunking... what Hendershot is doing
has already been attempted by folks in the late 1800s with
prior art, patents, etc. They mention "electrometer", and
Tesla is asked about it and Tesla is skeptical. Hubbard is also
mentioned. Debunking is real "THICK" at this point.
3/10/1928 - more articles about him in hospital
3/26/1928 - more "debunking" articles
.... after this date ... silence about Hendershot....

I find it amazing that in such a short time Hendershot goes from being a "genius" with amazing invention to a fraud with a carefully constructed debunking campaign, showing off devices that don't work, and hiding Hendershot from the press, etc.

So Bob, I'm starting to come to the conclusion that what we really need to figure out is not how to build this device "as Hendershot did", which is interesting, but "painful" and "primitive". What we are really after here are principals that can be applied to the construction of a more modern "self-powered" generator.

With step-wise refinement, we might be able to achieve that goal, but we shouldn't LIMIT ourselves to old-school approaches. For example, Hendershot was not using DIODES. Pretty amazing ... but we should restrict ourselves to doing it the same way as him. Hendershot struggled with reliability and had to "cheat" with little batteries. I find that not be such a "cheat" because you probably do need to provide power at first to get it to move into higher-levels of magnetic fields. Hendershot had a crazy circuit that doesn't really make sense in terms of conventional circuit design. He wasn't "educated" in circuit analysis, but I can tell that he WAS educated in induction-compass, Earth's field, formulas for solenoids and number of turns, etc. and how to best wind a coil to reduce self-capacitance (basketweave and honeycomb, etc.). These are state-of-the-art RADIO engineering practices of his day.
Find "Wireless Magazine" from 1926, 1927, 1928, etc. and honeycomb coil TABLES and long discussions about them can be found. Obviously Hendershot was reading this stuff, or exposed to engineers who know about coils.

So here are some of my thoughts about a modern approach:

* need low-power to start the effect. The best circuit I've found for this
is the "TATE" ambient power circuit which uses germanium diodes,
and capacitors and an antenna and ground. Very easy... works great.
* need an oscillating "chopper" circuit. It needs to be square-waves and
not sign-waves to produce "fast" pole-reversals in the solenoid with
narrow pulse-width, and very low-power duty cycle.
The 555 timer can do this with pretty low power. To get the solenoid
to produce a LARGE magnetic effect towards the keeper and magnet,
you will need to match the solenoid coil with the strength of the magnet.
So of the magnet is say 20 milliTeslas and you want 20 milliTeslas out
of your solenoid with a certain current, you can "derive" the number of
turns you need -- given other solenoid geometry.
The "TATE" circuit and your antenna might not provide enough juice
for the solenoid, 555, etc. ... so instead use battery power @ first
to prototype this.
* need "tuned" circuit for pick up of the oscillations created by the magnet.
Unlike "radio" tuned circuits, we are tuning for oscillations much lower.
The oscillations can be 40 to 180Hz if we are taking "buzzer" frequencies
or can be 1.3khz to 3khz if we are talking Earth's NMR frequencies ...
or can be much much higher such as 1.4Ghz if we are talking
full-wave reception into metal cylinders inside your coil. I think Hendershot
was using high-frequency reception to create magnetic field oscillations --
"beat frequencies" that could then be harnessed using lower-frequency
tuned circuits. Hence, various "stages" are tuned various ways
with consideration for "phase" and other things. These are non-trivial
circuit analysis problems, but not "impossible" to figure out. A good
circuit simulator might help. One thing lacking in circuit simulators, however,
is the accounting of the all the "mutual-induction" and the notion of
"positive-feedback" using energy "received" from the outside of
a closed circuit.
* need "low resistance" load "in-circuit". It becomes just part of the circuit
adding the the "R" in an "LRC" circuit. If you keep R small enough,
oscillations can continue. Be too greedy with "R", such as trying to run
some HEATER that you sit by when its cold ... oscillations stop, circuit
doesn't work. So lighting is possible because bulbs are low resistance.
Heating elements ... much more difficult ... much more juice.

Unlike "radio", a large magnet may be a sort of "magnetic field antenna".
In radio, to receive long-waves down in the 2khz range, you would need a very very very long antenna ... even if that antenna was Quarter-Wave.
Yet a MAGNET ... and a BAR ... and a COIL ... may be a different sort
of antenna that is long-wave and can couple with the Earth's field
since METAL responds to the Earth's field. I.e. you can provide a
quick magnetic pulse and make the electrons and protons in the metal
spin for a time ... As these spins start to settle down, feeling the drag
of the Earth's field, they start to adjust and spin with the Earth's magnetic
field. So all around us we have a magnetic field -- kinda weak though -- that will take what we have done SPIN-WISE ... and alter it into what it wants to do SPIN-WISE... We provide a little power ... the Earth undoes our power ... and puts things BACK to what it wants restoring balance.
Resonance matters because like pushing a child on a swing, we need
our pulses to be exactly right so that we can HARNESS the Earth's field
properly.

I think many of us have been working out ideas like this ... and the real challenge here is building a machine to do this that is self powered.
I feel, however, the design of this machine need not be Hendershot's original schematic (given we can't find that ... there are several alternate schematics and a disinfo campaign to contend with). Rather, we need to understand what is going on here and make NEW machines that harness energy this "new" way.

This challenge needs to be approached with great respect too because if it is indeed "easy" to do ... the geo-political ramifications of this are non-trivial ... and "change" comes with great risk and resistance.

You can either "share everything you do" freely with the world and not swet it ... or have really really good security and keep your notes under lock and key.

Welcome to the puzzle.
-morpher44
