Hi, everybody! I'm new to this forum. Three days ago I made a cell, just using a quickcrete, just like Lidmotor did, I had a bag in my garage for a few years.
It showed 0.7V from the very beginng. The voltage have been increasing since then and now it's around 1.27 -1.31 V. Today I shorted it the current started at 30uA and went down to 1uA, stayed there for few minutes, then it went down 0.4 uA and was there for a few hours. When i disconnected it, the voltage came back to 1.3V in about 10-15 min. And i can do it as many times as I want. I bought alum today in Food Basics, will do something with it on weekends.
Alex

@hiops - and thanks for sharing

@all - sorry it's taking so long to report. Seems i'm perhaps only one with latest cell's ingredients. I've got my wedding in a month and a one year old kid but have started on it and will have it done soon.

[pengrove]

Inquorate,
This is a subject that I really do not want to get into, but I will answer you this one time. The cell did bounce around a little very small amount with the charting. But the Scalar Tuner was all over the place. I'm sorry to say this but were not finished with any of this. It's going to get far worse and "They" know it, that is why they are storing food, but not for us just them. It is time to put all differences aside and work together. I really hate to know anything about any of this, but I guess it's my path in life. I just see things far different then most people and always have. Yes I'm off the wall sometimes but I'm really afraid at what I see going on with the whole world. Take for example the Sun and what is going on with it, that Star can cook you right one side of the planet, reason for under ground bases built everywhere, but not for you. That is all I'm going to say about it.
John B

Hey John I agree with you about the Sun. I think the Bible says something about the Sun getting 10x's hotter. End from my point of view everything is on track with Edgar Cayce Prophecy. Cayce says that mass amounts of innocent people will be killed during the war between the rich and poor. Which will cause the Sun to react. Others think it all has to do with alignments and astrology. Maybe so but our mind as a whole created this illusion.

What do you suggest that we do? I have plans to drive to the nearest railroad tunnel for shelter. Thats about the best Idea that I can come up with.

[Inquorate]

The results really are remarkable

Even completely bone dry, my replication of Mr JB's last cell is quite telling.

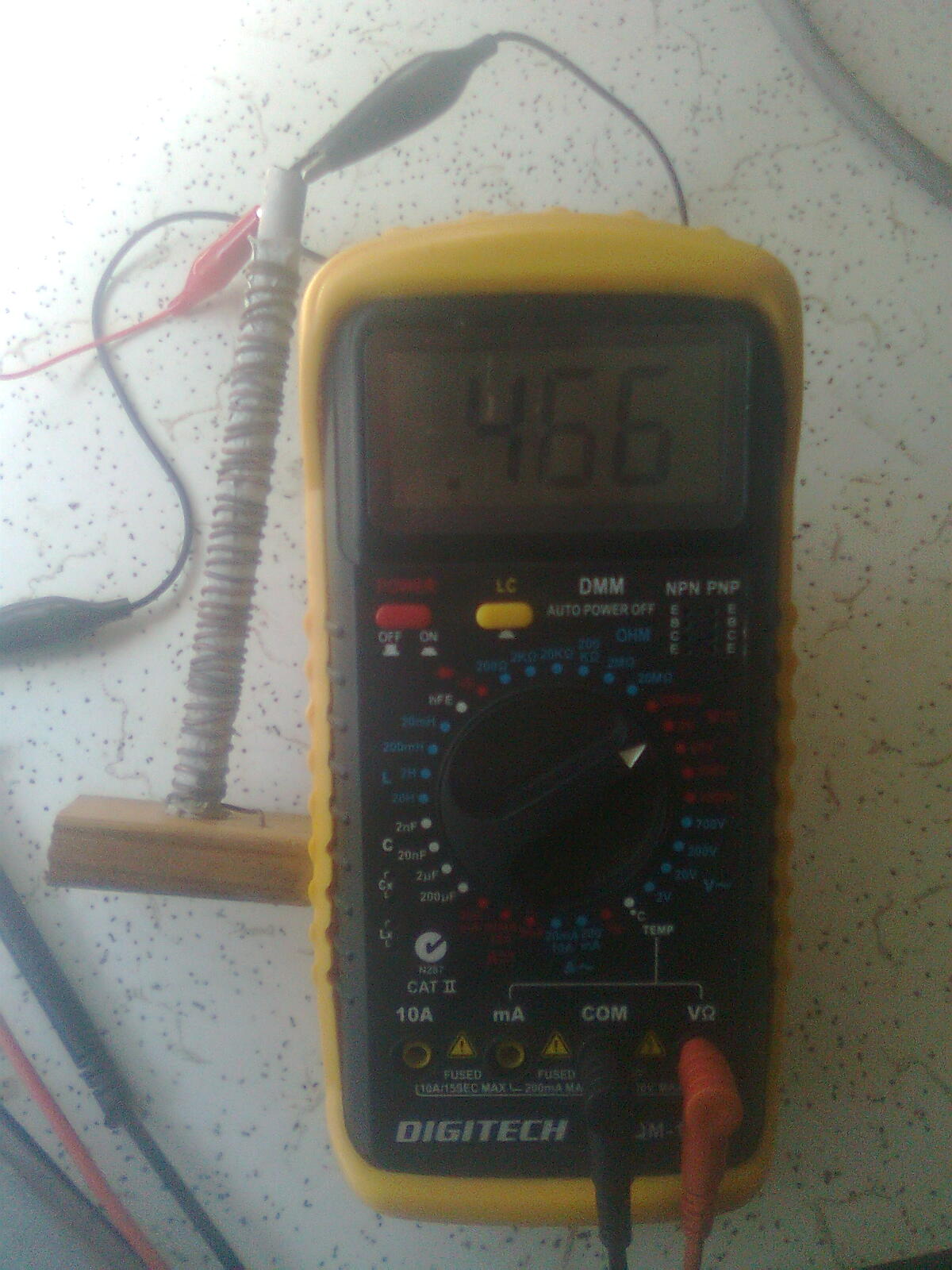

Bone dry, there is .5 volts and .5mA AND a half to one degree temperature difference to ambient copper and magnesium. (need to do more tests, unsure why fluctuated) Not enough to run oscillator and LED.

Slightly damp, the cell gives .9v and between 12mA and 2mA (depending on temp in sunlight?) AND is one degree less than ambient. (depending on wether loaded or unloaded?) Enough to run OScillator and LED

Wet, the cell gives 1.2v and over 100mA. I'm pretty sure that's galvanic. Also, a 2 degree temperature difference. Not sure how much of that is evaporative cooling.

Will post video when i put it all together. I want to see what it does damp, re corrosion and have a clear plastic tube to keep it in.

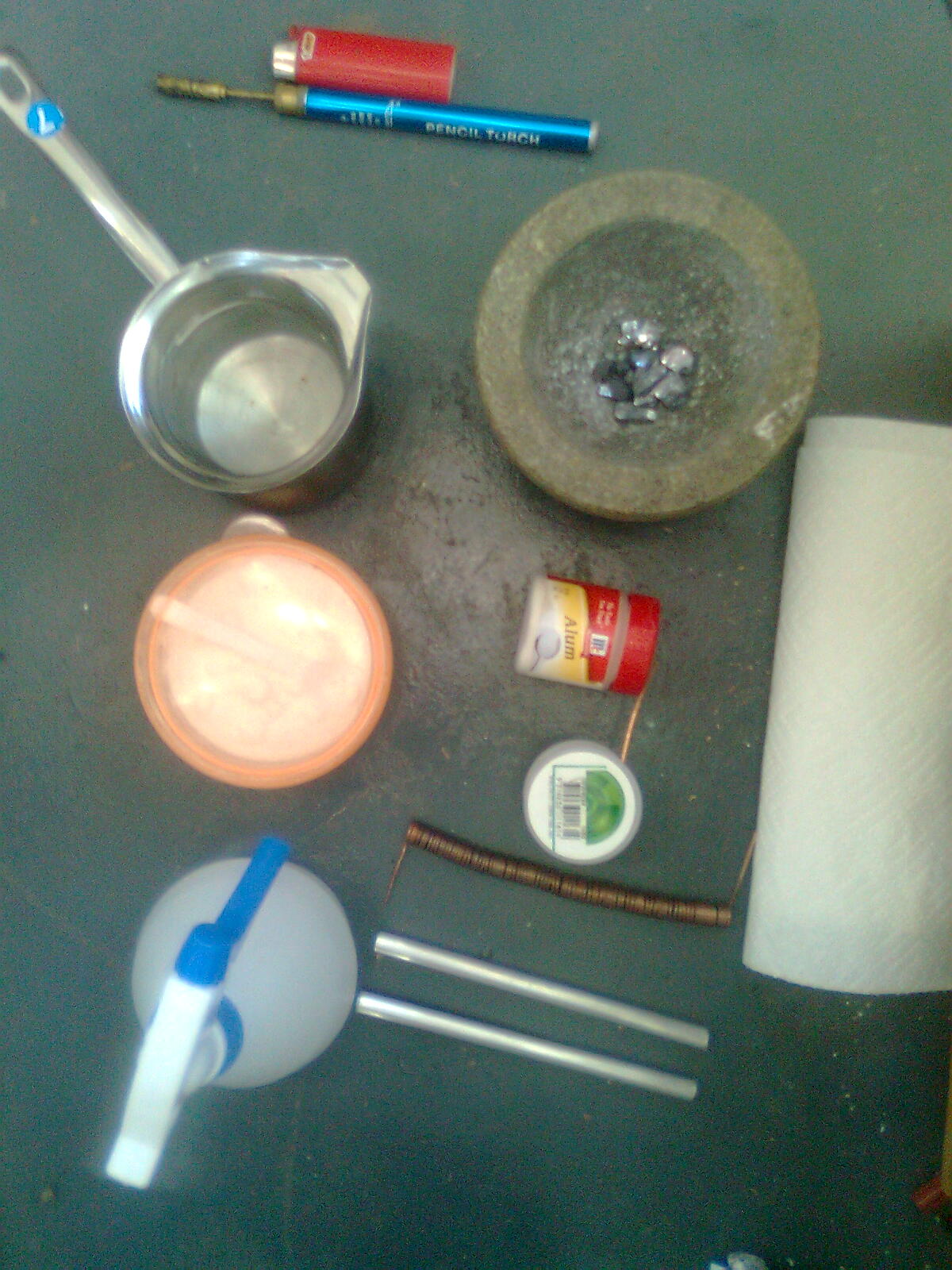

Mr JB, I'm interested in your treatment for aluminium, as i have aluminium tape and have copper tape on order. I believe we can make a dry cell that can power an LED or small radio.

EDIT i changed some of above values after putting video fragments together; had apparently misremembered mA values. Should have it on YT tonight.

[pengrove]

Has anyone tried lime mortar instead of portland cement?

[John_Bedini]

Earth Lights/Crystal Cell

Hi everybody,
Have been very busy will be back to show some things about these cells.
Back to work now as I must get things done.
John B

[Inquorate]

Video Uploaded

Here's a link to the link

Bedini's non-galvanic earth battery and open field joule thief circuit - Page 3 - Heretical Builders

[DadHav]

Cells and Motors

Hello Everyone. It's been years since I've been here. I hope you don't mind me experimenting with the interface again to see how things post. I'd like to hang out a little bit and see what I can learn. I've made a few small cells but haven't done much reading. I posted some videos but then thought I'm probably leading people in the wrong direction. so I should probably learn a little more before I go on. I have managed to run two window motors with one small 4 inch copper pipe / magnesium cell. I'll read up a little and see what's going on. (DadHav YouTube channel)
Do I just copy and past links right in this mail?
Hi John, Rusty.
John H.

[chuck H]

Crystal cells powering FM transmitter

This is 2 crystal Alum cells made with semiconductor copper and Magnesium. They are powering an FM transmitter that John Bedini made. When we made this video they had been powering the transmitter for about 5 hours... I will post some other videos later on about 6 different cells I have made with semiconductor copper and Magnesium powering Oscilator circuits running multiple LEDS. Enjoy video...

YouTube - Crystal battery FM transmitter.wmv

[blackchisel97]

charging attempt

@DadHav, In the text editor window click on hyperlink button (the one with a blue globe and chain link) and copy paste your link in.

@All I was experimenting a bit with one of my strongest cement batteries to see if they can accept and will hold a charge. Pulse is small since there is LED in parallel but battery did gain 0.3 V overnight and it seems to hold. I'll let it run some more and do the load test.
YouTube - Cement Battery_ charging attempt

Update on March 30th: While battery did gain in potential it didn't gain much in capacity terms. It was able to power the load during test for longer period of time but not able to sustain constant voltage. My conclusion - it cannot be charged by this method.

Vtech

[John_K]

Here is the link to the window motor running window motor:

YouTube - DadHav's Channel

Other great videos there too.

Cheers,

John K.

Hello Everyone. It's been years since I've been here. I hope you don't mind me experimenting with the interface again to see how things post. I'd like to hang out a little bit and see what I can learn. I've made a few small cells but haven't done much reading. I posted some videos but then thought I'm probably leading people in the wrong direction. so I should probably learn a little more before I go on. I have managed to run two window motors with one small 4 inch copper pipe / magnesium cell. I'll read up a little and see what's going on. (DadHav YouTube channel)
Do I just copy and past links right in this mail?
Hi John, Rusty.
John H.

[blackchisel97]

This is 2 crystal Alum cells made with semiconductor copper and Magnesium. They are powering an FM transmitter that John Bedini made. When we made this video they had been powering the transmitter for about 5 hours... I will post some other videos later on about 6 different cells I have made with semiconductor copper and Magnesium powering Oscilator circuits running multiple LEDS. Enjoy video...

YouTube - Crystal battery FM transmitter.wmv

This is nice! Thanks for sharing. What else did you use beside copper/copper oxide?
Been busy with other projects but far from giving up

Thanks
Vtech

[Lidmotor]

Cell update

@DadHav
Thanks for joining in John. Your input should help everyone. You may be able to precision machine the metal anode and cathode for these cells and get much better results than those of us who are using soda cans and bits of copper wire.

@All
I have been working of other projects while I let my homebuilt cells mature.
The cement cells ended up at around 1 volt with not much amperage. One of them is attached to a small LCD clock and has found a home on my kitchen widow sill next to "Hewey" my solar powered super cap Joule Thief.
Another sucess story is one of my magnesium / carbon cells that has been running a pulse motor for weeks now. That one used Alum and distilled water. The cell consists of a 6" piece of carbon fiber arrow shaft wrapped with magnesium ribbon. The cell is inside a clear plastic bottle and not completely sealed. When the motor slows down or I don't see "fog" inside the bottle, then I remoisten the cell with Alum water and off it goes again. The Mg is deteriorating but very slowly.

@John B. and Chuck H.
Thanks for that video on the FM transmitter. Low power drain devices seem to be the way to go with these crystal cells. I noticed that you switched to copper as the outside of the cell instead of aluminum. I guess we all need to be on the hunt for copper bowls now.

Cheers,

Lidmotor

[minoly]

alternative to copper bowl

Yes, Thanks for all the videos from everyone. They are big help and provide much inspiration

We picked up a 3" copper end cap from our local hardware store.

Patrick

[John_Bedini]

Earth Lights / Crystal Cell

Hi Everybody,
The Fm Transmitter is an old chip I had laying around BA1404 just to test the current draw of the Copper Magnesium Alum cells. I was to lazy to build the phase lock loop for this device as it takes more then 5 Ma to run that part of it.
The total current draw is around 7 to 10 Ma depending how I set the RF power output. I have set it at 1/3 of a mile at which point it drops into the ground, I think this is good enough to prove the point about using these cells for an emergency transmitter for a few drops of water. The few drops of water powers it for two days continuous with no degradation to the Magnesium or copper. I did make the cement cells with Barium titanate and Strontium titanate seem to still be working, the good thing I found is they can be charged up and hold the current just like batteries, still working on them.
John B

[blackchisel97]

Hi Everybody,
The Fm Transmitter is an old chip I had laying around BA1404 just to test the current draw of the Copper Magnesium Alum cells. I was to lazy to build the phase lock loop for this device as it takes more then 5 Ma to run that part of it.
The total current draw is around 7 to 10 Ma depending how I set the RF power output. I have set it at 1/3 of a mile at which point it drops into the ground, I think this is good enough to prove the point about using these cells for an emergency transmitter for a few drops of water. The few drops of water powers it for two days continuous with no degradation to the Magnesium or copper. I did make the cement cells with Barium titanate and Strontium titanate seem to still be working, the good thing I found is they can be charged up and hold the current just like batteries, still working on them.
John B

That's good news! Thank you for the update John
