Power supply circuit drawing wanted!
Hi,
only few days ago, I saw a circuit drawing from which was claimed to be the origin Joes Power Supply Circuit. Didn't bring much attention to it. Maybe thought it was on my own Computer already, but isn't, as far as i know.
Have anyone seen a circuit like the attached?

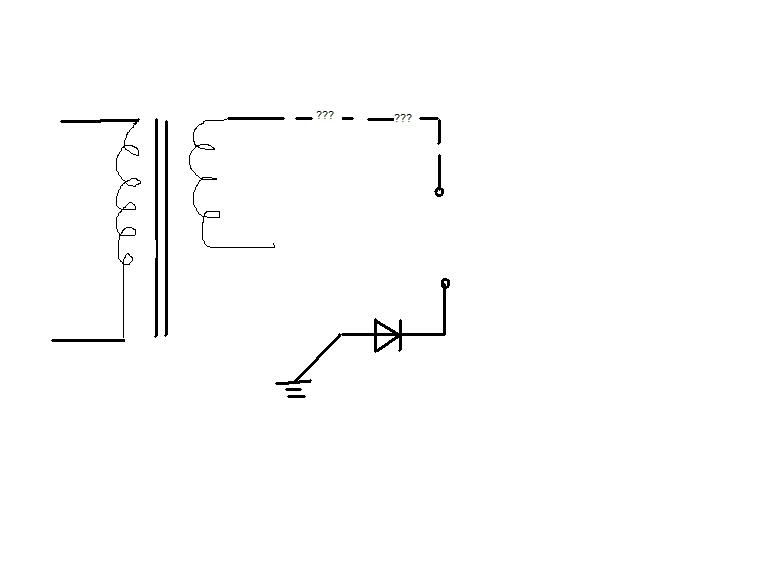

Secondary ground ends open. Secondary active got a Zener(?)-Diode or whatelse. From real ground comes a oneway rectifing diode.
The pic apeared to me in some relation to reading this forum.
Thanks in advance
magnetO
