Computer Fan SSG My Implementation

[**~Imhotep~**]

Parts information


Schematic


Coil Details


Close-up of coils


Closeup of circuit


3 Full fans with Parallel outputs


Fans running with current draw and output voltages

This is the link to the video showing the fast charging rate. See the excitement coming!!

YouTube - Bendini SSG **~Imhotep~** Adaptation

[Z-Man]

Thanks and good job man!

I've been struggling with this fan for awhile now ,,, was going to move back to my regular SSG. till i found this ,, gotts me motivated!

[mskhalil]

hi
good picture
did u use other coil than the one in the fan
please advice

[mskhalil]

I see 4 trasistor but the diagram is for one trasistor

[**~Imhotep~**]

Used the original coil, which had three posts originally. One of the post had 2 wires together on them. Carefully separate the two wires and take a clipping of a resister or a thin stiff piece of wire off any component and insert it into the 4th position on the bottom of the plastic rotor. Carefully twist the other wire that you separated and solder. Remember this is after you removed the original circuit board. And all your left with is the plastic rotor with the 3 posts with wires on it after adding the 4th stiff piece of wire take the second wire you separated and solder it to the 4th position. Ive did a dozen of these and all of them were different, but you CAN use the original coils without having to rewind them. When your done with the rotor, look at the coils and 2 of the wires will come from the inside from the starting wrap of the coil and 2 of them will be on the outside of the wrap. The inside wraps are the negative side of the coils. The 2 outside are the positive ends of the coils. Check with a ohm meter and you will get continuity across 2 of the posts that will be one set of windings then you will get continuity across the other 2 if you did them correctly and that will be your other set of coils.

There is only one transistor on this circuit per fan. I used three fans and took the output diodes and hooked them together to get a super fast recharge, if you watch the youtube video thats why it charged so fast. Which was a 12 volt sealed lead acid battery.

This is the cheapest quickest way to see what bendini is talking about. He is a genious.

[jimmydean]

Very very VERY COOL! Thank you for posting this!

[Z-Man]

Wahoo!

Well two fans, wired up, fired up and good to go!
I re wrapped my fans with some fine wire (hair-like thickness) don't know the size
sense i scraped most of my supplies from motors and tv's ,,,, you name it ill scrap it for parts ,, anyways both fans have 10ohm readings on em ,, had my wires reversed on my circuit ,, took awhile to figure that out ,,,anyways got'em going thanks for the info ......

I think we could use a SSG- troubleshooting , tips and tricks section for us newbies eh!!!

I would say resistance to the base and also wires reversed to the circuit has keep me up too long at nite trying to figure out why it don't work.

For those still struggling-
I've found resistance around 45ohms -50ish-ohms and it will work
and pay attention to your wires from the coils when wiring the circuit (If it don't work, try reversing them)

Keep up the Fire!

[**~Imhotep~**]

glad to hear you got them going! i will be posting more results and a step by step how-to soon. never give up

[Bodkins]

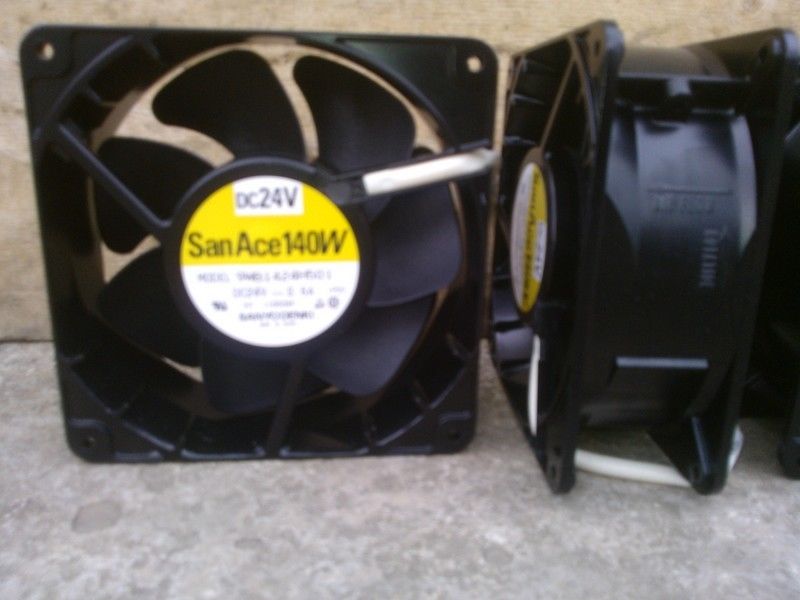

Im posting here for people that need a fan to work with,
I get alot of messages about fan and where to get them so here they are thank to inhotep!

[nvisser]

glad to hear you got them going! i will be posting more results and a step by step how-to soon. never give up

Can you drive modified cfl`s with this fan setup?

[Bodkins]

Can you drive modified cfl`s with this fan setup?

yes
YouTube - Singlewire lightbulb Singlewire charging

[360smokers]

Imhotep-Bedini-Fan charger

I tried to build the Imhotep-Bedini Setup.
I tried to spin the fan but it isn't spinning. I used 9 volt non-rechargable batteries
Plz help me
Do I have to keep the original circuit board or remove it from the stator.
Instead of ecg125 I am using 1N4007 diodes.
The fan had originally 2 wires going to it.
So where is the problem.
Imhotep Plz I need your help.

[wrtner]

I tried to build the Imhotep-Bedini Setup.
I tried to spin the fan but it isn't spinning. I used 9 volt non-rechargable batteries
Plz help me
Do I have to keep the original circuit board or remove it from the stator.
Instead of ecg125 I am using 1N4007 diodes.
The fan had originally 2 wires going to it.
So where is the problem.
Imhotep Plz I need your help.

I don't think all computer fans are the same. Also, for me, the problem is that everything is so tiny. Are you sure you would not be better off with a traditional SG?

[Bodkins]

fan charging again

I am a big fan of the fan chargers....

https://www.youtube.com/watch?v=L15AmIF0r6M&t=253s

and have been busy buying a 24 volt 0.6 amp fan...Yes I got to take it to bits to see if its the right one, and then buy LOADS of them to play with.......

I have other editions to the set up... which involve connects to the ground with potential difference metals, zinc and copper. one for the primary battery and one for the charge battery.

fun fun fun,,,,

[gmang73]

Did I do good?

Parts information


Schematic


Coil Details


Close-up of coils


Closeup of circuit


3 Full fans with Parallel outputs


Fans running with current draw and output voltages

This is the link to the video showing the fast charging rate. See the excitement coming!!

YouTube - Bendini SSG **~Imhotep~** Adaptation

Thank you late great John Bedini and Imhotep for your time and sharing oh and Royal Raymond Rife, Floyd Sweet, Tom Bearden,Aaron Marakami, Excuse my spelling. Walter Russel, Nicola Tesla, Viktor Schauberger, Joseph Newman, Eric Dollard, Peter linderman,Ed leed skalin, Datfman, Joe, Vesper hbtmotor, Floyd Sweet. I am sure there is another 50 names I am forgetting. I do truly thank all of these people for their Time and ability to share. I had zero experience in electronics and magnetism/electricity I still have a life time to learn. Give it a go, back yourself you never know you might be the kid that likes being told it's not possible. It's like flying a kite. Happy learning. Although this was about the purple light, I was able to charge deep marine batteries on fast charge 11w input very early in my fascination as Nicola stated and Royal Raymond Rife knew,
Until people can build stator's burning noble gas there is no point improving them in my eye,

Here is a link

https://www.youtube.com/watch?v=nroBcB-42aU

I have not seen anyone come close to replicating the purple effect in my Time.
look past the finger to see the heavenly glory.
Why are people unable to see an effect for what it is?
Just because I started with crumbs does not mean I do not offer a free lunch, You can catch a meal with crumbs.
Sometimes I feel it's better if things don't turn straight on and the door doesn't open automatically. It's just a feeling.
:P Thanks again ....remember sometimes it can start with one fan.
Sharing is key in Truth, I couldn't afford the Bedini wheel although thanks to Imhotep he helped distract me in a trying time truly,my thanks.
