  • Don Smith step up type


    For lambda 6 m long wire with 2 mm diameter / with insulation removed/

    So the natural frequency of the 6 m wire is 50 MHz


    Then for lambda 1.5 m long wire with 4 mm diameter

    This will go on 50 mm former plastic pipe so 2*r*3.14159 = 50*3.14159 = 137 mm *5 turns = 0.785 m so there is left 0.715 m for connections

    So the primary is made from 4 mm diameter wire on 50 mm former plastic pipe with 1.5 m long wire and with 5 turns

    The secondary: first we cut it on two pieces of 3 m long wire

    This will go on 70 mm former plastic pipe so 2*r*3.14159 = 70*3.14159 = 220 mm * 13 turns = 2.86 m and 0.14 m left for connections

    So secondary is made from 2 mm diameter wire on 70 mm former plastic pipe with 2*3 m long wire with 13 turns of each 3 m long wire

    The primary with this parameters will have a coil diameter of 54 mm and the coil height will be 35 mm /the turn space is 2 mm/

    The induction calculator with these parameter gives the results for:

    L= 1.38 uH and Cs= 2.7 pF from this the frequency is 82.45 MHz

    The secondary with these parameters will have a coil diameter of 72 mm and the coil height will be 104 mm /the turn space is 6 mm/

    The coil induction calculator with these parameters gives the results for:

    L= 6.32 uH and Cs= 3.3 pF and from this the frequency is 34.85 MHz

    Primary = 82.45 MHz with 2.7 pF
    Secondary = 34.85 MHz with 3.3 pF

    So to achieve the 34.85 MHz frequency resonance in primary we should add additional capacitors to the circuit, from the calculator it gives a 15.11 pF value that is to say additional 12.41 pF and then the frequency will be 34.85 MHz


    If the output voltage of the HV module is 2500V then each turn on primary will have of 500V 2500V/5 turns and therefore the secondary with 26 turns will have 13000V

    13000V too high

    Additional note

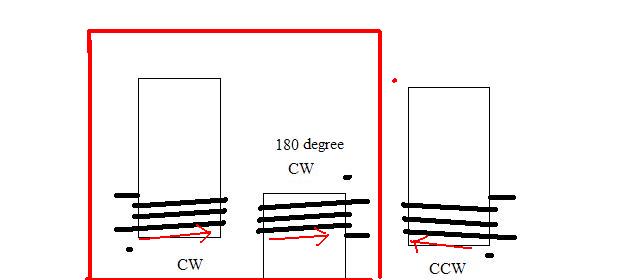

    If you start to wind a coil in CW mode then if you turn it 180 degree it will still be a CW winding you cannot change the winding direction buy rotating it!


    http://www.energeticforum.com/attach...1&d=1339272316

    take care about that

    Zilano what do you think are these equations right! Or should I change something? Although 13000V for me is too high.

    rgds blackrobi
    Attached Files

    Comment


    • Originally posted by zilano View Post
      CLICK POST

      THEN A WINDOW WILL OPEN JUST SCROLL DOWN
      AND U WILL SEE A BUTTON SAYING ATTACHMENTS CLICK THAT ANOTHER WINDOW WILL OPEN AND IT WILL ASK U TO BROWSE THE LOCATION OF THE PICTURE FROM YOUR HARD DISK LOCATE THAT AND CLICK UPLOAD AFTER UPLOAD CLICK THAT WINDOW CLOSE
      AND CLICK SUBMIT REPLY BUTTON
      UR DONE AND U WILL SEE UR ATTACHED PIC IN THE POST.

      SEE PIC BELOW



      SEE PIC BELOW
      Thanks greatly for your reply will get busy on it right away, mike.

      Comment


      • don smith type of device replicated

        this is a type of replication of a don smith device that works - however the type of neon transformer used is not available any more and you would have to use the MINIMAX from china or elsewhere that has not been incorporated with the new ground fault internal modifications (as that has rendered all of most of the neon supply transformers unusable for a grounded or spark gap type circuit---
        such as ventex-france ,etc. models)

        hope the attachment came through satisfactory,if not I will try again untill I get it right. mike.

        Comment


        • Originally posted by blackrobi View Post
          Don Smith step up type


          For lambda 6 m long wire with 2 mm diameter / with insulation removed/

          So the natural frequency of the 6 m wire is 50 MHz


          Then for lambda 1.5 m long wire with 4 mm diameter

          This will go on 50 mm former plastic pipe so 2*r*3.14159 = 50*3.14159 = 137 mm *5 turns = 0.785 m so there is left 0.715 m for connections

          So the primary is made from 4 mm diameter wire on 50 mm former plastic pipe with 1.5 m long wire and with 5 turns

          The secondary: first we cut it on two pieces of 3 m long wire

          This will go on 70 mm former plastic pipe so 2*r*3.14159 = 70*3.14159 = 220 mm * 13 turns = 2.86 m and 0.14 m left for connections

          So secondary is made from 2 mm diameter wire on 70 mm former plastic pipe with 2*3 m long wire with 13 turns of each 3 m long wire

          The primary with this parameters will have a coil diameter of 54 mm and the coil height will be 35 mm /the turn space is 2 mm/

          The induction calculator with these parameter gives the results for:

          L= 1.38 uH and Cs= 2.7 pF from this the frequency is 82.45 MHz

          The secondary with these parameters will have a coil diameter of 72 mm and the coil height will be 104 mm /the turn space is 6 mm/

          The coil induction calculator with these parameters gives the results for:

          L= 6.32 uH and Cs= 3.3 pF and from this the frequency is 34.85 MHz

          Primary = 82.45 MHz with 2.7 pF
          Secondary = 34.85 MHz with 3.3 pF

          So to achieve the 34.85 MHz frequency resonance in primary we should add additional capacitors to the circuit, from the calculator it gives a 15.11 pF value that is to say additional 12.41 pF and then the frequency will be 34.85 MHz


          If the output voltage of the HV module is 2500V then each turn on primary will have of 500V 2500V/5 turns and therefore the secondary with 26 turns will have 13000V

          13000V too high

          Additional note

          If you start to wind a coil in CW mode then if you turn it 180 degree it will still be a CW winding you cannot change the winding direction buy rotating it!


          http://www.energeticforum.com/attach...1&d=1339272316

          take care about that

          Zilano what do you think are these equations right! Or should I change something? Although 13000V for me is too high.

          rgds blackrobi
          U MUST CHANGE THE LENGHT OF PRIMARY MAKE IT SHORT. and recalculate. when resonance happens then voltages work according to Don smith calculation.

          yes u r right about coil it was a mistake on my part. turning 180 degree wont make it cw or ccw. sorry about that. but when working with dc polarity instead of ac polarity things are different ns poles becomes Sn. u will get the hang of it. when u will experiment.


          I TAKE A SHORT BREAK NOW. WISH U ALL GOOD LUCK. BE SAFE FOLLOW SAFETY PRECAUTIONS. USE EARTH AS SAFETY MEASURE.



          rgds

          zzzz
          Last edited by zilano; 06-10-2012, 07:20 AM.
