  • Originally posted by Turion
    bi,
    Thatís a great video! That video showed everything you need to know except one thing.

    He shows you that the coil has a resonant frequency where it puts out the MOST power. Everybody agree on that point?

    Then he puts the coil under load and shows that the amp draw of the motor goes down. Do we agree on that?

    The rpm of the motor goes UP. Do would we agree on that?

    Can we agree that the motor amp draw going down and the rpm of the motor going up, which means the rotor turns faster, are positive things if they are the ONLY things you consider?

    Because the only thing NEGATIVE he showed is that the ďmax possible output output of the coilĒ went down when it was put under load. Thatís a bad thing, right? So how do you fix that? You give the motor LESS power so the rotor slows down and you get back to the resonant frequency of the coil where it has maximum output. You get back to the ORIGINAL max output of the coil using LESS voltage and LESS amps. Now times that by 12 when you have 12 coils and you begin to see just how incredibly important this is and how difficult it can be to get everything right so that you actually see MAX output at minimum cost.
    Dave,

    That makes a lot of sense. I understated now.



    Jason

    Comment


    • Comments inserted in blue

      Originally posted by Turion
      bi,
      Thatís a great video! That video showed everything you need to know except one thing.

      Agree it is good video.

      He shows you that the coil has a resonant frequency where it puts out the MOST power. Everybody agree on that point?

      I'd say the highest apparent power for that load.

      Then he puts the coil under load and shows that the amp draw of the motor goes down. Do we agree on that?

      Yes.

      The rpm of the motor goes UP. Do would we agree on that?

      Yes.

      Can we agree that the motor amp draw going down and the rpm of the motor going up, which means the rotor turns faster, are positive things if they are the ONLY things you consider?

      No. They are what they are. Neither positive or negative in my opinion.


      Because the only thing NEGATIVE he showed is that the ďmax possible output output of the coilĒ went down when it was put under load. Thatís a bad thing, right? So how do you fix that? You give the motor LESS power so the rotor slows down and you get back to the resonant frequency of the coil where it has maximum output. You get back to the ORIGINAL max output of the coil using LESS voltage and LESS amps. Now times that by 12 when you have 12 coils and you begin to see just how incredibly important this is and how difficult it can be to get everything right so that you actually see MAX output at minimum cost.

      I see no negative or positive here. Just the way things are. You deal with it.

      Although he does not comment on it, note the AC V & I waveforms on the scope and the phase. That, IMO, is the important take-away from the demo.
      Regards,

      bi ______

      Comment


      • It's all about power, real power

        Originally posted by Turion
        You see no benefit to a coil that produces its max output While requiring the motor to use LESS voltage and LESS amperage, and see NO BENEFIT to having 12 such coils on your generator?

        I have absolutely NOTHING more to say to you EVER. Even when the proof of everything I have been saying is verified by third party people YOU FOUND, you are unwilling to see the truth. We are done.
        You might consider that the reduction in power to the motor could result from the lowering of real power to the load. Or in other words, making the power factor worse. That means a reduction of the ratio of real power (watts, W) to apparent power (Volt Amperes, VA).

        Comment


        • Originally posted by bistander View Post
          Hi all,

          I happened across this video which I think is an excellent demonstration and explanation of generator speed up under load.

          https://youtu.be/vAXQBpuLu68

          Regards,

          bi

          Hi bi,

          Unfortunately, Conrad used a steel bolt for his coil core and back then this was not taken into account. Such bolts can introduce eddy current losses and this manifests in heat while the rotor magnet spins in front of it. And this eddy loss does get reduced the moment you attach a load to the generator coil so this inherently built-in drag does get reduced and so does the earlier draw of the motor. I am not saying that the capacitor tuning has no any beneficial effect here, just that the effect of the bolt can be decisive.

          The correct test in this respect would have been to replace the bolt by say a ferrite or metglas or finemet (or other low loss) core, these types have the least amount of eddy current loss, at least by 1 or 2 order of magnitude less than a bolt has. Of course, this replacement should have provided nearly the same L inductance for the coil the bolt did, to be able to make correct comparisons between the two cores.

          One more notice: A suggestion made by other builders for a fair test to demonstrate the 'generator speed up under load' effect would be first to measure the unloaded power draw for the prime mover motor, i.e. no generator shaft attached.
          Then attach the generator shaft to that of the motor with no load across the generator output and check the prime mover power draw again.
          Then load the generator as best you think and here it is also assumed your motor RPM is chosen in advance as best as you think it should be for your setup and check power draw for the prime mover for the 3rd time.

          Only then could conclusions correctly be made on the 'effect'.
          I also believe all builders should follow such measuring principle for a correct evaluation of their motor-generator setups.
          Notice that I do not question this effect, only wish to draw attention for a correct evaluation like mentioned above.

          Gyula

          Comment


          • Fwiw

            Originally posted by Cadman View Post
            Thanks for the link.

            So far, the companies that manufacture soft ferrites seem unwilling to sell to individuals in small quantities.

            I had looked at this Fe304 earlier and discarded it as a candidate because itís magnetite.

            Maybe it deserves a closer look. Perhaps when itís mixed with a resin and cast, the particles will be electrically insulated and behave like a soft ferrite?

            Itís worth a try, the cost is certainly low enough.

            Thanks again
            Hi Cadman,

            I transported your post over to this thread for obvious reasons. I hope you see it and consider the information.

            Insulating the particles in a magnetic hard ferrite can reduce Eddy currents but will not affect hysteresis loss which will be significant. A magnetically soft ferrite has much lower hysteresis, that is it is more easily magnetized and re magnetized in the opposite polarity, or even from low flux density to higher flux density, called minor loop hysteresis. Permanent Magnets are examples of magnetic hard material. It takes high energy to magnetize and demag. Silicon steel is soft magnetically and why it is used in electric machines where the flux changes amplitude or direction.

            Regards,

            bi

            Comment


            • Hello Bi,

              Very true, and the reason I am looking for soft ferrite powder source or an inexpensive way to limit the hysteresis and eddy current losses in a cast part.

              I know I could use transformer laminations but I do not want to be limited in the shape of the core or any other device I may try.

              I tried iron PLA in my printer, and it works to a degree, but it doesn't have enough iron density at ~ 0.53 g/cm3 for my purposes.

              Regards

              PS. I thought the main difference between hard and soft ferrite was the electrical insulating layer around each iron particle.
              If that's true then maybe resin casting Fe304 will accomplish something similar.
              Last edited by Cadman; 03-20-2019, 07:10 PM.

              Comment


              • Hard vs soft

                Originally posted by Cadman View Post
                ...

                PS. I thought the main difference between hard and soft ferrite was the electrical insulating layer around each iron particle.
                If that's true then maybe resin casting Fe304 will accomplish something similar.

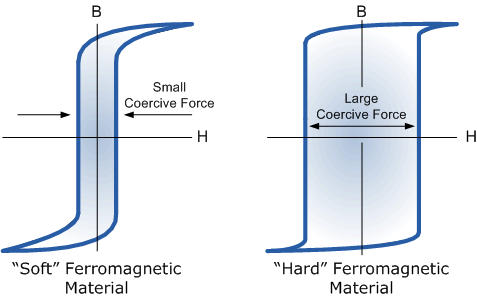

                No. It's the area enclosed on the BH curve. Soft = small area. Hard = large area. Has to do with molecular/crystal structures.

                Attached Files

                Comment


                • Well my first thought was it wouldnít work well, but Iím open to different things. I'm not going to try to mix it and sinter it. In any case itís already ordered along with the powdered iron and it wonít be too much trouble to cast two solenoid cores for comparison. At the least it will be interesting to see the difference between a ferromagnetic and ferrimagnatic core

                  Still need a source for soft ferrite powder.

                  Comment


                  • Rod

                    Originally posted by Cadman View Post
                    Well my first thought was it wouldnít work well, but Iím open to different things. I'm not going to try to mix it and sinter it. In any case itís already ordered along with the powdered iron and it wonít be too much trouble to cast two solenoid cores for comparison. At the least it will be interesting to see the difference between a ferromagnetic and ferrimagnatic core

                    Still need a source for soft ferrite powder.
                    How about something like this.
                    https://www.goldmine-elec-products.c...number=G19561A

                    Google for ferrite rods give big choice on dims and materials.
                    https://en.m.wikipedia.org/wiki/Ferrite_core
                    Reference as to what to look for.

                    When I was looking into ferrifluid, homemade stuff used waste from bin under grinder sifted to small particle size. Hot iron oxidizes real fast. Never tried it myself. Found a small bottle of ferrifluid for like $5 on Amazon. No harm in trying different stuff. I think those rods would be attractive due to density.

                    Regards,

                    bi

                    Comment


                    • Tested - Accel Under Load

                      Hi to all, and hoping Turion sees this,

                      I am posting here as not to interfere with other folk's threads. I was watching a YouTube vid about a shoe I was shopping for and this video popped up afterward, so wtf, I watched it. I think it is well done and credit the experimenter. Have a look.

                      Debunked - Thane Heins, ReGenX, delayed lenz, shorted coil, acceleration effect

                      https://youtu.be/kfRxsC9yumQ

                      Regards,

                      bi

                      Comment


                      • Permission

                        May I post?
                        Attached Files

                        Comment


                        • Originally posted by bistander View Post
                          Hi to all, and hoping Turion sees this,

                          I am posting here as not to interfere with other folk's threads. I was watching a YouTube vid about a shoe I was shopping for and this video popped up afterward, so wtf, I watched it. I think it is well done and credit the experimenter. Have a look.

                          Debunked - Thane Heins, ReGenX, delayed lenz, shorted coil, acceleration effect

                          https://youtu.be/kfRxsC9yumQ

                          Regards,

                          bi
                          Hi all,

                          this is an interesting video, but probably not for the reasons you think. I can tell you exactly why he's seeing a higher input power with the open bifilar compared to the single wire, which is what I've been saying for a long time now and this is the last time I will post about it. I'm not talking theory, it's something you can verify on the bench, as I have done.

                          The bifilar coil, when connected in series, has a much higher capacitance than a single filar coil. This implies that the resonant frequency of the bifilar coil is much lower than that of the single filar coil. No load will slow the rotor down faster than a capacitor tuned for resonance! Don't believe me, try it on the bench, and I hope this issue will be settled once and for all.

                          The reason he sees the high input power is that that bifilar coil at that speed is not at, but in proximity of its resonant frequency, which on its own puts a big load on the rotor. When shorted or with a load he destroys this partial resonance, thus it behaves like the single filar coil.

                          Dave, I know you are probably the one with the most hands on experience with this kind of generators on this forum, and I respect that. But I repeat, a part from the resonant aspect in which one can get with hi turns bifilar coils, and see what the guy shows, the reason of the speeding up is not due to the coils capacitance. It's due to the core's internal currents, which result in a delayed response of the core towards the inducing magnet.

                          Do the experiment! Make two identical coils, one bifilar and one single filar. But both with the same total length of wire (and turns finally). First make sure that the unloaded (open) bifilar doesn't put more load on the rotor than the single filar one, to avoid seeing what the guy shows, due to partial resonance. Once that is cleared find the point (speed) where the bifilar doesn't put a load on the rotor when shorted. Now do the same with the single filar, it will do the same thing at the same frequency, proving that the effect is not due to the coils capacitance.

                          Now the last thing the guy in the video missed is when he says can't see the delay on the scope. The delay is not between voltage and current of the load, unless you use inductive or capacitive loads. But in order to see the real delayed lenz on the scope you need to put the first scope channel on an unloaded coil as a reference. The second channel goes on the loaded coil. Then you will see the delayed response with respect to the unloaded reference coil, which shows where the magnets are, while on channel two you see where the delayed response actually is in time.

                          regards,
                          Mario

                          Comment


                          • OK

                            Originally posted by Pot head View Post
                            May I post?
                            You really don't need permission, so yes.

                            bi

                            Comment


                            • So, why bother?

                              Originally posted by Mario View Post
                              Hi all,

                              this is an interesting video, but probably not for the reasons you think. I can tell you exactly why he's seeing a higher input power with the open bifilar compared to the single wire, which is what I've been saying for a long time now and this is the last time I will post about it. I'm not talking theory, it's something you can verify on the bench, as I have done.

                              The bifilar coil, when connected in series, has a much higher capacitance than a single filar coil. This implies that the resonant frequency of the bifilar coil is much lower than that of the single filar coil. No load will slow the rotor down faster than a capacitor tuned for resonance! Don't believe me, try it on the bench, and I hope this issue will be settled once and for all.

                              The reason he sees the high input power is that that bifilar coil at that speed is not at, but in proximity of its resonant frequency, which on its own puts a big load on the rotor. When shorted or with a load he destroys this partial resonance, thus it behaves like the single filar coil.

                              Dave, I know you are probably the one with the most hands on experience with this kind of generators on this forum, and I respect that. But I repeat, a part from the resonant aspect in which one can get with hi turns bifilar coils, and see what the guy shows, the reason of the speeding up is not due to the coils capacitance. It's due to the core's internal currents, which result in a delayed response of the core towards the inducing magnet.

                              Do the experiment! Make two identical coils, one bifilar and one single filar. But both with the same total length of wire (and turns finally). First make sure that the unloaded (open) bifilar doesn't put more load on the rotor than the single filar one, to avoid seeing what the guy shows, due to partial resonance. Once that is cleared find the point (speed) where the bifilar doesn't put a load on the rotor when shorted. Now do the same with the single filar, it will do the same thing at the same frequency, proving that the effect is not due to the coils capacitance.

                              Now the last thing the guy in the video missed is when he says can't see the delay on the scope. The delay is not between voltage and current of the load, unless you use inductive or capacitive loads. But in order to see the real delayed lenz on the scope you need to put the first scope channel on an unloaded coil as a reference. The second channel goes on the loaded coil. Then you will see the delayed response with respect to the unloaded reference coil, which shows where the magnets are, while on channel two you see where the delayed response actually is in time.

                              regards,
                              Mario
                              Thanks for the post Mario.

                              I think that video, your opinions, and the bulk of evidence we've seen all support the proposition that I stated long ago. That this "speed-up under load" is inconsequential to the generator performance at load. And that it is basically a method of increasing no-load losses. Those increased no-load losses diminish as load is applied giving a false illusion of improved performance. It is obviously a case of altering coil design to make no-load operation much worse so someone can claim improvement at load. All the effort and expense put into coils that "speed-up under load" is wasted and actually counterproductive.

                              Even Turion recently said
                              Originally posted by Turion
                              ...
                              2. The MORE you speed up under load the LESS your coil produces as a generator coil so the perfect coil does not speed up or slow down.
                              ...
                              The whole deal is silly. Why do it? Has anybody actually shown (proven) an improvement in generator performance at load vs using conventional wound coils?

                              Regards,

                              bi

                              Comment


                              • @ Bi:

                                I never said that the speed up under load effect or delayed lenz effect is useless. I said that I believe that the principle behind it is not due to coil capacitance, and the other thing is that one can easily get confused and think he's getting speed up under load, when in reality he was in proximity of the resonant spot of the high capacitance bifilar coil when the coil was unloaded, but still putting a load on the rotor because of the partial resonant tank effect between coil inductance and its capacitance which act against the magnets.
                                Then, when putting a load on the coil and destroying the resonant tank effect, he removes that brake and thinks he's getting delayed lenz effect.

                                Dave, I'm not saying that I don't believe your machines do what you say. The coil example you mentioned is interesting. Question, when you run the two different coils unloaded, is the motor input draw the same? If not it would be interesting to disconnect all the series connections from the wires, basically all strand open and unconnected and see if then the draw is the same.

                                See, maybe with many strands in series things are again different than only 2 strand in series. Yes Tesla said that the bifilar coil eliminates self induction, meaning that at the correct frequency (resonance), the capacitve reactance and the inductive reactance are equal, resulting in zero in impedance, just like in a normal tank circuit with a coil and capacitor.
                                With his method you don't need an external cap which at those times weren't cheap. I don't think he ever said that a coil like that would speed up a generator if mounted in one.
                                I said what I said because from my tests on the bench a single wire coil had the exact same performance as an identical coil, series bifilar but same overall length. They would speed up under load at the same speed. Thus my skepticism about the origin of the effect, not its effectiveness. I'm also not saying this to call you a liar, not at all. Just trying to compare notes and bench experiences.

                                cheers,
                                Mario

                                Comment
