    Originally posted by Ufopolitics View Post
    Hello at All,

    Another huge disadvantage we all have in the Figuera Design...is that in the "LINEAR CONFIG" we are only using One End of the Full Compressed Field by Like Poles...Completely wasting the opposed poles, which are open out to Space...and even though in my testing we still collect "some" energy...we are wasting close to a Fifty percent for not having face to face repulsion poles.

    We must realize a Magnetic Field "EXHAUST" Energy from BOTH POLES...and so by only using the pulses from one side...the other one is lost...at least in a high percent.

    My Future tests would be done in a Toroid Geometry Core...but wanna have first, the Full working configuration linearly, before I migrate to that set up...


    Regards


    Ufopolitics
    How about that E-core idea? http://www.energeticforum.com/296940-post1947.html

    Comment


    • Originally posted by bistander View Post
      Hello Bistander,

      It should work only if you take off the center leg of the "E", which is completely interfering or best said "absorbing" the center N-N Fluctuations, weakening them.

      Another thing is... that when we use a closed Squared pattern then add on each ends the primaries, then secondaries at each side, the field directional and strongest "face to face" repulsion is gone...weakening induction.

      The best choice would be a "rounded" geometry, like a Toroid, where the directional field will suffer less losses within core.

      Magnetic Fields don't make left or right turns...much less a "U" Turn...and yes, we could "redirect" them...but with losses included.


      Ufopolitics
      Principles for the Development of a Complete Mind: Study the science of art. Study the art of science. Develop your senses- especially learn how to see. Realize that everything connects to everything else.― Leonardo da Vinci

      Comment


      • Lenz on Figuera...

        More about my previous Tests...

        Another thing I wanted to add is how the Lenz Forces manifests on the Figuera Generator...

        Simply whenever we load or short out the main secondaries at Center Coils, where full repulsion is fluctuating...this repulse field increases pressures to the point that if they are somehow loose...they will fly away from Secondaries space.

        IMHO...this is Lenz acting here...

        But, if all coils are holding tight together (like they are supposed to be, I had them loose to observe reactions...)...then there would be a "slight" increase on amperage AS a slight decrease on voltage from the main source being pulsed.

        This "slight" fluctuations take place whenever System is at high Operating speed pulsing...if we are slower...then is no longer a "slight" but huge fluctuations.


        Regards


        Ufopolitics
        Last edited by Ufopolitics; 03-03-2017, 06:29 PM.
        Principles for the Development of a Complete Mind: Study the science of art. Study the art of science. Develop your senses- especially learn how to see. Realize that everything connects to everything else.― Leonardo da Vinci

        Comment


        • E-core

          Originally posted by Ufopolitics View Post
          Hello Bistander,

          It should work only if you take off the center leg of the "E", which is completely interfering or best said "absorbing" the center N-N Fluctuations, weakening them.

          Another thing is... that when we use a closed Squared pattern then add on each ends the primaries, then secondaries at each side, the field directional and strongest "face to face" repulsion is gone...weakening induction.

          The best choice would be a "rounded" geometry, like a Toroid, where the directional field will suffer less losses within core.

          Magnetic Fields don't make left or right turns...much less a "U" Turn...and yes, we could "redirect" them...but with losses included.


          Ufopolitics
          I disagree. The middle E leg is short enough to leave an air gap for the secondary conductors just like the air gap and armature conductors in a standard rotary generator. And those conductors are oriented properly. So all you need to do is get flux to move back and forth via the opposing primaries.

          And flux has little difficulty with corners in steel circuits. Look at all the square transformers. Rounded corners are a bit better in that there is less core material, shorter magnetic path and less leakage. But for the sake of available parts, reuse of E-core is the way to first test.

          Regards,

          bi

          Comment


          • Originally posted by bistander View Post
            I disagree. The middle E leg is short enough to leave an air gap for the secondary conductors just like the air gap and armature conductors in a standard rotary generator. And those conductors are oriented properly. So all you need to do is get flux to move back and forth via the opposing primaries.

            Bistander,

            Sorry, but here we are dealing with a Repulse Field right at center leg (previously Image shows that at center bar)...say they are two Norths...well, then your E Core would be shorting out that N-N Repulsion by bringing the two S-S and delivering right at center of the N-N. It will completely Cancel repulse field.

            Remember this is not "Classic N-S" Attract and Standard Generator deals anymore...

            Originally posted by bistander View Post
            And flux has little difficulty with corners in steel circuits. Look at all the square transformers. Rounded corners are a bit better in that there is less core material, shorter magnetic path and less leakage. But for the sake of available parts, reuse of E-core is the way to first test.

            Regards,

            bi

            It is not about the Flux, but about Field Directional Vectors from both poles.

            Sorry, but...If, in my test I would have set all coils at Angular Steel cores, even rounding them up...they would never generate what they did in a straight line.




            Take care


            Ufopolitics
            Last edited by Ufopolitics; 03-03-2017, 08:54 PM.
            Principles for the Development of a Complete Mind: Study the science of art. Study the art of science. Develop your senses- especially learn how to see. Realize that everything connects to everything else.― Leonardo da Vinci

            Comment


            • Originally posted by bistander View Post
              I disagree. The middle E leg is short enough to leave an air gap for the secondary conductors just like the air gap and armature conductors in a standard rotary generator. And those conductors are oriented properly. So all you need to do is get flux to move back and forth via the opposing primaries.
              Bistander, Ufo is right. If you want move the magnetic lines further and closer to each electronagnet you need an air path which will be different in each point of collision of the field. There are two forces fighting and in order to move the collision plane the high reluctance path need to have some relation with the distance to the electromagnets. If constant then there wont be any movement because both fields will take the shorter air path to return to the other electromagnet pole and movement will be null.

              Ufo, If you remember the last Buforn's patent in 1914 he piled many sets to use both poles of each electromagnet. But he piled them linearly. For some reason I do not understand he did not close the loop to form a full toroid. Intriguing... Have a look to the drawing of that patent to see what I refer.

              Other thing: IMHO, I think that between cores may be needed a kind of insulator to separate the poles of the electromagnet, which never reverse, from the poles in the induced coil, which are reversing in AC style, every cycle.

              Comment


              • Originally posted by hanon1492 View Post
                Ufo, If you remember the last Buforn's patent in 1914 he piled many sets to use both poles of each electromagnet. But he piled them linearly. For some reason I do not understand he did not close the loop to form a full toroid. Intriguing... Have a look to the drawing of that patent to see what I refer.
                Yes I do remember that Patent from Buforn...

                What he did was to align each ending pole to the next in kind of an array, like:

                S/N-y-N/S-y-S/N-y-N/S-y-S/N-y-N/S...and so on, where N/S or S/N are the electromagnets orientation and N-N and S-S are the Repulse Interactions with y secondaries at center.

                but leaving the two ending poles at the row loose (not looped)

                I agree is some how much better than leaving all south poles loose when making only N-N Interactions with secondaries.

                Originally posted by hanon1492 View Post
                Other thing: IMHO, I think that between cores may be needed a kind of insulator to separate the poles of the electromagnet, which never reverse, from the poles in the induced coil, which are reversing in AC style, every cycle.
                Sorry Hanon, but an insulator between cores won't do nada...this is an Spatial Interaction that would jump through everything to reach iron and copper windings on it.

                In the beginnings I thought also that a gap and insulation would be required ...but after testing...we can build everything mounted on a common single core.

                The BEST WAY, is like I posted before...using Two Closed Looped by Diodes Big and Fat Coils (like Brushless type does) to be the ones that do the direct facing against secondaries, and so they are being Induced by smaller pulsating coils I refer to as "P1". I already tested that option and it even "cleans up" the signal from commutator noise.

                Secondaries will "kick back" on this Isolated P2 Induced Coils, but not on the originating pulse signaling Coils (P1) therefore will not reflect/ nor interfere on Source nor on electronic pulsing device.


                Regards


                Ufopolitics
                Last edited by Ufopolitics; 03-03-2017, 09:38 PM.
                Principles for the Development of a Complete Mind: Study the science of art. Study the art of science. Develop your senses- especially learn how to see. Realize that everything connects to everything else.― Leonardo da Vinci

                Comment


                • To Ufo & hannon

                  Originally posted by Ufopolitics View Post

                  Remember this is not "Classic N-S" Attract and Standard Generator deals anymore...
                  Ufo,

                  The standard generator doesn't work on "Attract" "Classic N-S". It moves conductors through a magnetic field (flux at the air gap).


                  Originally posted by Ufopolitics View Post

                  It is not about the Flux, but about Field Directional Vectors from both poles.
                  Both Ufo & hannon,

                  The field vector represents the flux (magnitude & direction) at each point (the field). That vector can be the resultant or combination of several sources, poles or fields, but will be a single vector. So I see just one field where the y coil is. That field changes as the mmf in the primaries change, but is a single valued field at any point in time.

                  So it is all about flux. And changing of that flux.

                  bi

                  Comment


                  • Primaries

                    Bistander;

                    That is very good assumption. the primaries even though they have opposing fields their Field vector is in the same direction acting as one strong vector potential to the secondary and because the opposing fields (Lenz law maintains this opposition) are present they are what push the secondary field from side to side.

                    as for the flux, it is not about flux strength it is about movement. sure the movement can be caused by intensity change but Figuera figured out that all one needs to do is have movement in the field vector all while the cores retain 80 to 90 % of the magnetic potential. this is why the long air path is present, it aids in minimizing the currant change. the primaries are only reduced in relation to the secondary not them selves.

                    it sounds like you are starting to understand the Figuera device.
                    and this is a good thing.

                    MM

                    Comment


                    • Change

                      Originally posted by marathonman View Post
                      as for the flux, it is not about flux strength it is about movement.
                      Originally posted by bistander View Post
                      And changing of that flux.
                      "Changing of that flux" includes "movement".

                      Comment


                      • Understanding

                        Originally posted by marathonman View Post
                        Bistander;
                        it sounds like you are starting to understand the Figuera device.
                        MM, I've understood it from the time I first read about it. It is just that you have not been listening to me.

                        BTW, thanks for the absence of insults today.

                        Regards,

                        bi

                        Comment


                        • Originally posted by bistander View Post

                          So it is all about flux. And changing of that flux.
                          Then, please explain us the induction in homopolar generators where there is no change in flux. Later , if you solve it, do not forget to ask for a Nobel prize.

                          You have not listened carefully to Mr. Feynman. I guess that you think that you understand perfectly induction and I am afraid that you dont see the meaning of both induction equations and their differences. Mr. Feynman can help you!. Bye.

                          Comment


                          • Faraday's Law

                            Originally posted by hanon1492 View Post
                            Then, please explain us the induction in homopolar generators where there is no change in flux. Later , if you solve it, do not forget to ask for a Nobel prize.
                            There is a change in the conductor position or material composition relative to the flux. I thought that was well understood. There is, or are, example(s) which appear to defy this effect to some degree. Perhaps that is what you're talking about. I think Wikipedia for Faraday's Law shows this. I don't claim to know everything about the subject as it is very deep even into theory of relativity. But I do understand the science associated with induction and generation.
                            Originally posted by hanon1492 View Post
                            You have not listened carefully to Mr. Feynman. I guess that you think that you understand perfectly induction and I am afraid that you dont see the meaning of both induction equations and their differences. Mr. Feynman can help you!. Bye.
                            Mr. Feynman isn't the only source of knowledge on the subject. That which you claim I do not understand, I, in fact, do understand very well. You must be misinterpreting what I relate on this forum or have preconceived opinions.

                            bi
                            Last edited by bistander; 03-04-2017, 05:09 PM. Reason: Typo

                            Comment


                            • Originally posted by bistander View Post
                              Ufo,

                              The standard generator doesn't work on "Attract" "Classic N-S". It moves conductors through a magnetic field (flux at the air gap).
                              Hello Bistander,

                              I guess I did not expressed myself properly...sorry for that.

                              What I meant was that all known generators work based on alternating North and South Poles...or as you see it, changing the B Field Directions.

                              As you understand it, the B Field Vector comes out of the North Pole correct?

                              And so, B Field "enters" through the South Pole...

                              All the above is how Classic Magnetism explain B Field Vectors...isn't it?


                              Originally posted by bistander View Post
                              Both Ufo & hannon,

                              The field vector represents the flux (magnitude & direction) at each point (the field).
                              You meant that each Electromagnet have its own B Field direction and Magnitude...and I agree...

                              Originally posted by bistander View Post
                              That vector can be the resultant or combination of several sources, poles or fields, but will be a single vector.
                              But now above... you are applying the "All Included" to come up with a Single Vector...

                              And so, I do not agree with your inclusion of all the above...

                              As I understand the Classic approach...when a North and a South Pole are facing each others Spatially (meaning not contacting, but with an air gap)...I can see that it becomes a Single Vector which goes from North Pole to South Pole...

                              But I can not, and so Classic Magnetism does not apply the same concept above whenever we have Two Like Poles, a North to North or a South to South. This contains TWO Vectors which does not "add up" to a Single Vector like with N-S approach, but contains Two Vectors Opposed in Direction, Magnitude could be the same or different...and so accordingly both Fields would react...but both vectors never add up, but repel each others...this is Classic Magnetism Theories...nothing new here Bistander.

                              Originally posted by bistander View Post
                              So I see just one field where the y coil is. That field changes as the mmf in the primaries change, but is a single valued field at any point in time.
                              I completely agree with the above, YES, there is Only ONE FIELD between both Primaries...a called REPULSION FIELD, which is formed by TWO Opposed Direction Vectors of Force and Magnitude, or you could call them TWO OPPOSED B FIELDS if you like...

                              NOW, following the Figuera principle, whenever One of this Vectors falls below the magnitude from the opposed one...then this weaker vector retracts by the force impinged by the strongest one. And so the opposed actions take place alternatively as they change magnitudes constantly...

                              AND SO, this Hi-Lo fluctuations, generates a back-forth Displacement of the Repulsion Field, formed by the two alternating forces from two vectors of opposed directions.


                              Originally posted by bistander View Post
                              So it is all about flux. And changing of that flux.

                              bi
                              Sorry, but I can not just conclude the same way you are doing above...that "simple" as just "it's all about flux" would never give all the definitions and explanations above...

                              And please realize that I have not even mentioned the words "spin" or "vortexes of force, nor "magnetic pressures" at any point of my post above...just to "speak your same language"...


                              Regards


                              Ufopolitics
                              Last edited by Ufopolitics; 03-05-2017, 02:40 AM.
                              Principles for the Development of a Complete Mind: Study the science of art. Study the art of science. Develop your senses- especially learn how to see. Realize that everything connects to everything else.― Leonardo da Vinci

                              Comment


                              • Reply to Ufo

                                Originally posted by Ufopolitics View Post
                                Hello Bistander,

                                I guess I did not expressed myself properly...sorry for that.

                                What I meant was that all known generators work based on alternating North and South Poles...or as you see it, changing the B Field Directions.
                                >No, they don't. Lots of them do, but not all. The homopolar dynamo is an excellent example, as hannon mentioned a few posts ago.
                                Originally posted by Ufopolitics View Post
                                As you understand it, the B Field Vector comes out of the North Pole correct?

                                And so, B Field "enters" through the South Pole...

                                All the above is how Classic Magnetism explain B Field Vectors...isn't it?
                                >Not exactly. When working with magnetic machinery, I seldom considered or even thought about N and S poles. I worked with the fields and more specifically the flux. The North and South pole references help some people visualize magnetics. The N and S poles are defined by the B field (vectors) entering or leaving the surface of a volume (magnet) and not the other way around.
                                Originally posted by Ufopolitics View Post

                                You meant that each Electromagnet have its own B Field direction and Magnitude...and I agree...
                                >There is a magnetic field around and through an electromagnet. Each one. When multiple electromagnets are in the same vicinity, those fields combine into a resultant magnetic field and that resultant field has a single valued vector at every point representing B in magnitude and direction. You cannot have more that one B vector at any point in space at any point in time.

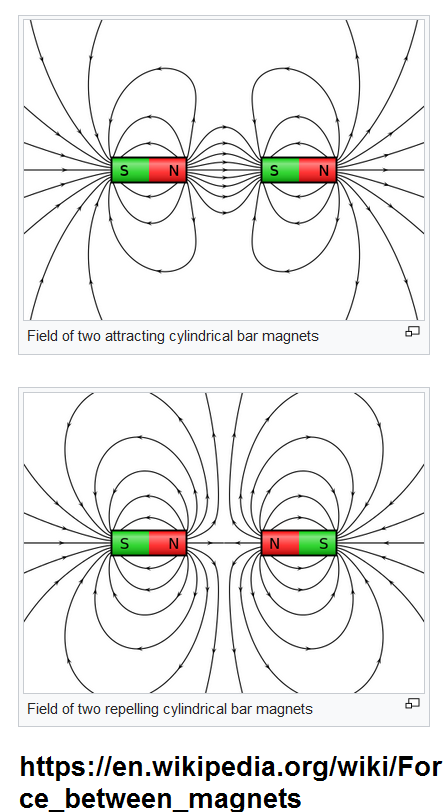

                                Notice on these 2 field maps of pairs of magnets that each of the diagrams specifically labels it as a "field" as is singular, not plural, although that "field" is obviously the combination or resultant of the 2 fields, one from each magnet.

                                Originally posted by Ufopolitics View Post

                                But now above... you are applying the "All Included" to come up with a Single Vector...

                                And so, I do not agree with your inclusion of all the above...

                                As I understand the Classic approach...when a North and a South Pole are facing each others Spatially (meaning not contacting, but with an air gap)...I can see that it becomes a Single Vector which goes from North Pole to South Pole...

                                But I can not, and so Classic Magnetism does not apply the same concept above whenever we have Two Like Poles, a North to North or a South to South. This contains TWO Vectors which does not "add up" to a Single Vector like with N-S approach, but contains Two Vectors Opposed in Direction, Magnitude could be the same or different...and so accordingly both Fields would react...but both vectors never add up, but repel each others...this is Classic Magnetism Theories...nothing new here Bistander.
                                >I'll refer again to the Wikipedia article sited above. If you continue reading it into the section about calculating magnetic force you will see this sentence.
                                Calculating the attractive or repulsive force between two magnets is, in the general case, an extremely complex operation, as it depends on the shape, magnetization, orientation and separation of the magnets.
                                Notice that there is no differentiation between method of calculating force between attraction and repulsion.

                                I suspect this will be counter intuitive to most who have played or even measures forces with 2 magnets attracting and repelling each other. I'd attribute that to this qualifier in the article.
                                The equation is valid only for cases in which the effect of fringing is negligible and the volume of the air gap is much smaller than that of the magnetized material.
                                Until the gap is sufficiently small to satisfy that statement, the repelling situation develops more fringing than attraction.

                                Originally posted by Ufopolitics View Post

                                I completely agree with the above, YES, there is Only ONE FIELD between both Primaries...a called REPULSION FIELD, which is formed by TWO Opposed Direction Vectors of Force and Magnitude, or you could call them TWO OPPOSED B FIELDS if you like...

                                NOW, following the Figuera principle, whenever One of this Vectors falls below the magnitude from the opposed one...then this weaker vector retracts by the force impinged by the strongest one. And so the opposed actions take place alternatively as they change magnitudes constantly...

                                AND SO, this Hi-Lo fluctuations, generates a back-forth Displacement of the Repulsion Field, formed by the two alternating forces from two vectors of opposed directions.


                                Sorry, but I can not just conclude the same way you are doing above...that "simple" as just "it's all about flux" would never give all the definitions and explanations above...
                                >OK. Another difference of opinion. Imagine that?
                                Originally posted by Ufopolitics View Post

                                And please realize that I have not even mentioned the words "spin" or "vortexes of force, nor "magnetic pressures" at any point of my post above...just to "speak your same language"...
                                >Thanks.

                                Regards,

                                bi
